You can develop your HR reporting strategy to take advantage of the strengths of both the online analytical processing (OLAP) SAP BW system and the online transaction processing (OLTP) SAP R/3 or mySAP ERP Central Component (ECC) system. While you can still conduct many HR processes in your R/3 or ECC system, BW, with its standard SAP BW business content for HR, is better suited for many analytical tasks. I’ll give an overview of the factors to consider in selecting a reporting option and show how legacy data migration affects your decision.

OLTP versus OLAP

First, let’s understand how to match typical HR reports to the appropriate environment. Figure 1 presents both the OLTP and OLAP ends of the reporting spectrum from left to right. As reporting needs move from transaction-based reports to reports that summarize executive information or support decisions, the environment shifts from OLTP to OLAP. For example, you can process your payroll with R/3, but you may need BW to create a management cockpit.

Figure 1

As reports grow more complex, you need to rely on OLAP capabilities to a greater extent

Table 1 classifies typical SAP HR reports that you can execute in an OLTP environment. Table 2 maps HR reports that are better suited to an OLAP environment.

Reporting Period

The reporting period is another factor that contributes to whether you should report from a transactional system or BW system. Each implementation typically has its own written or unwritten policies and rules around data management. In some cases, companies keep all their data in the OLTP processing system, while some move the data into an OLAP system. Therefore, the reporting period varies depending on the movement of data from the two types of systems. If all the data continues to be in the OLTP system, then the hardware sizing and system performance should support the reporting requirements. For instance, if users start running large HR/Payroll reports during normal business hours, then your system needs to handle that. Base your decision of where to store your data on this movement of data and associated dates.

Archiving and Legacy Data

Users often resist moving any data from the OLTP system to the OLAP system. Most companies archive HR data and move it offline after every two or three years or so. The time frame depends on disk space, performance, and reporting requirements. User fears often emerge due to many factors:

• HR data’s date sensitivity and event-driven nature


• Ad-hoc reporting to management and fast turnaround time requirements


• Comfort level with normal HR reporting and query tools such as InfoSet Query and Wage Type Reporter


• Resistance to learn another tool such as Business Explorer (BEx) Analyzer in BW

Consider your HR structures, security, and authorization when deciding what to move to an OLAP system. Organizational factors such as virtual boundaries about sharing data or reporting in particular organizational units can present challenges, especially when running a single instance of SAP HR only. SAP’s enterprise structures and organizational structures affect this issue. Users sometimes become confused about how security and authorization play a role in reporting. For example, when security is divided using personnel areas or subareas, the same boundaries also restrict reporting. Remember that HR structures exist in your OLTP system, while your OLAP system can lack the structures if there is legacy data in the OLAP system. For instance, you can load legacy data in an OLAP system with legacy structures while your OLTP system has the new HR structures. In situations like this, you should ensure that BW security and authorization cater to the legacy structures, too.

Many new SAP users, especially government implementations, want to bring over historical data that is from seven to 10 years old. This creates a challenge for implementation teams, especially around HR structures and reporting that cut across historical and SAP data. Most new users decommission the legacy system, so they want a new home for all legacy data. The legacy HR systems may fall into one of the following categories:

• Legacy HR application functionality that standard SAP HR functionality already fulfills. For example, certain infotypes in SAP already store this data, such as infotype 0105 for email addresses.


• Legacy HR application functionality that the implementation team identified as a gap during a gap analysis. You might create custom infotypes to bridge the gaps.


• Legacy HR application functionality when you no longer require the old functionality, but just the data

HR enterprise structures can be a very important factor in the nature of reporting and data analysis. For more information about structures, refer to my HR Expert article “Design Dynamic SAP HR Structures — and Diagnose and Repair Faulty Ones” from October 2006. Later, I’ll discuss adding HR structure elements such as personnel areas to BW InfoProviders. Some objects, such as the Benefits InfoProvider, contain none of the fields related to enterprise structures. While you can analyze a BN area, you cannot create a report based on personnel area or subarea.

How to Decide Between OLTP and OLAP

It’s easy to decide whether to use R/3 or BW if the report falls clearly into an OLTP or OLAP category. What about reports that fall somewhere in the middle? You can use the decision tree in Figure 2 to guide you. You can come up with your own decision tree similar to Figure 2 with decision criteria that are right for your organization.

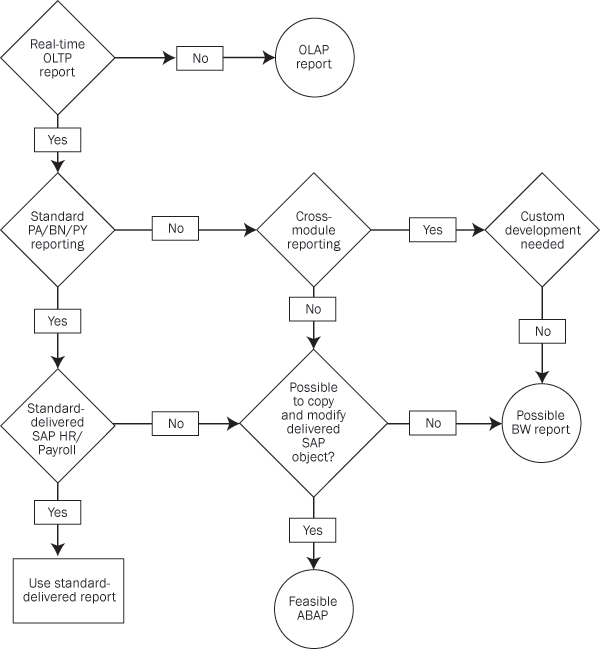

Figure 2

OLTP or OLAP decision tree

When to Report in OLTP

You should report in your transactional system in many routine situations. For example, if you have no legacy or historical data challenges, then R/3 should do the trick. In addition, smaller implementations that can afford to keep transactional data online for longer periods should take advantage of this data and create R/3 reports.

Similarly, R/3 reports work well when dealing with fewer users with an insignificant gap between the typical three types of users. These are occasional users who are functional analysts or management; data analysis users such as OLAP analysts or institutional researchers; and report creators and authors including administrators and HRIS staff. However, if a large knowledge gap exists among these three types of users, then you may require more than R/3.

Additionally, users can generate many different standard and custom reports with Wage Type Reporter, payroll journals, HIS, compliance reports, and InfoSet Query in R/3. I’ll explore each type of functionality in more detail.

Wage Type Reporter

Wage Type Reporter (H99CWTR0) is part of the standard R/3 system. It’s a good tool when you want to analyze payroll results in a single pay period without complex retroactive accounting. Users commonly complain that Wage Type Reporter output becomes difficult to interpret for retroactive accounting. Some of the users resort to payroll journals in that situation, but are not completely satisfied.

Remember that you cannot go beyond the payroll results that you have in your R/3 system. You can select multiple wage types and then download the report in Microsoft Excel or Access to perform deeper data analysis. Payroll departments are often concerned about such data downloads due to sensitivity of the data. On one hand, they face a challenge of not having a good reporting tool, while on another, they do not want users to download and manipulate the data in Microsoft Excel or Access. Starting with R/3 4.7 as well as specific Support Packages in Version 4.6, the Wage Type Reporter selection screen contains more period selection fields to help you compare two periods.

Payroll Journals

Like Wage Type Reporter, payroll journals provide payroll results analysis using R/3 payroll data. They have similar limitations as Wage Type Reporter for payroll periods, retroactivity, and combining PA data with payroll results. Unlike the ABAP program Wage Type Reporter, payroll journals are easy to customize because of HR Forms. The customization of these forms is almost inevitable since the SAP-delivered forms such as UJS1 and UJD1 are not useable in their delivered state. Figure 3 presents the standard forms for payroll journals. The figure also shows you that the payroll journals use a set of four forms for heading, details, totals, and continuation. When you are customizing the forms, you almost have to balance the four forms together. The customization process becomes iterative and time consuming as well.

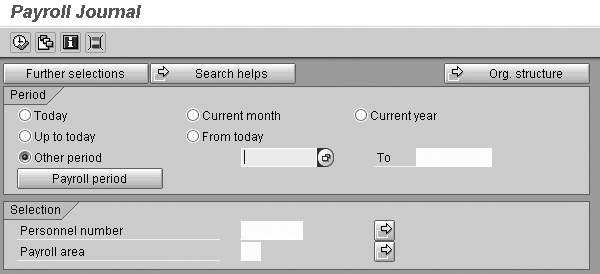

Figure 3

Payroll journals offer customizable payroll results analysis

HIS Reports

Some HR users ignore or do not take full advantage of the HIS reporting tool. HIS allows you to combine the structures from Organizational Management (OM) with reports from other modules, such as PA and BN. This allows you to run reports at the organizational unit level using data from PA or BN. The graphical user interface (GUI) makes it more user friendly. Figure 4 shows the graphical organizational units on the left side of the screen and the PA reports on the right side.

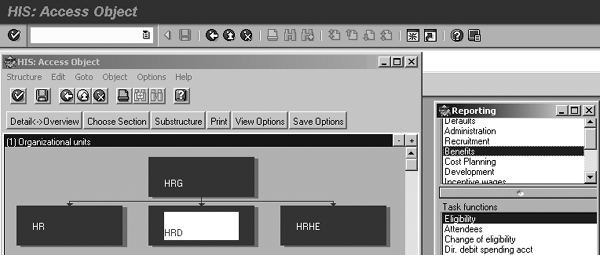

Figure 4

HIS reports combine data from OM, PA, or BN

Compliance Reports

Your SAP transactional system remains the best place to generate compliance reports. You can use R/3 to generate most standard compliance reports, such as US Equal Employment Opportunity (EEO), affirmative action program (AAP), garnishment letters, and Tax Reporter State Unemployment Insurance (SUI) and 941 reports.

InfoSet Query

As Figure 5 shows, InfoSet Query allows you to select infotypes and create a formatted report. Users often find it difficult to access payroll data in InfoSet Query. You can use PY infotype 04xx series (0402, 0403, 0447, 0497) to load data in infotypes and then use them through InfoSet queries. The IMG contains nodes for setting up these infotypes. You also need to consider disk space and system performance.

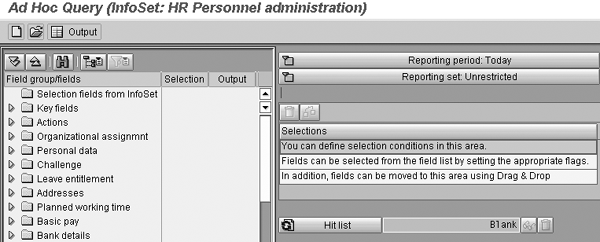

Figure 5

InfoSet Query creates formatted reports based on infotypes

When to Report in BW

In many complex situations, users struggle to create R/3 reports. In such cases, BW is a better choice. Let’s examine some of the scenarios for reports that you can create in BW.

Scenario 1: Standard Reports

SAP BW is delivered with business content (pre-configured objects) that includes the InfoProviders for various HR submodules. Users can create queries using the delivered business content if the delivered ODS object or InfoCube has the required data elements. For instance, the delivered Benefits InfoCube allows you to create a query for employees in a particular plan with deduction amounts.

Scenario 2: Custom Development

In this scenario, you either modify the delivered business content (copy the objects and change them) or create completely new InfoProviders. In BW, you can create a report that combines legacy data and SAP data after go-live. For example, BW can combine PA infotypes (data that is not in payroll cluster tables like WPBP) with payroll results for reporting. HR professionals in the public sector can use BW to read payroll results and detour reports to Funds Management (PSM-FM) to drill down.

In addition, BW can report training costs based on business event attendance by employee and the actual payroll costs spent during the training. BW also can create a summary report of labor cost distribution without the capability to drill down to employee payroll results. BW also performs trend analysis and graphical representation of HR data with drill-down capability using historical data.

These and other similar reports require complex custom development in SAP R/3, so BW may be more logical in these scenarios. In addition, you might choose BW when you face some of the common challenges in SAP HR application custom development listed here. For instance, if you lack skilled resources familiar with different SAP HR environments, then BW might be your best bet. Since SAP PA, OM, BN, and PY modules require deeper internal knowledge — for example, of logical databases and cluster tables — you may not be able to get resources with skills in all or many of these areas.

It may seem as if SAP BW is a magic wand. Unfortunately, that is far from the truth. The HR-BW implementation has its own pain points too. Here are the major points to consider:

• Designing the new InfoProviders is tricky! Besides functional HR knowledge, you need to bring data modeling expertise to the table. It is my experience that creating ODS objects is easier than InfoCubes, relatively speaking.


• If you are creating new InfoProviders or if SAP-delivered data extractors (to extract data from R/3 to send to BW) are not sufficient to extract data, then you need technical resources to develop the new extractors. Additionally, designing new queries using BEx Query Designer presents challenges. Users can create inefficient queries and degrade BW performance.


• In many cases, HR InfoProviders have no delta functionality, which is an incremental data load that brings changes only. If you load the data up to 12/31/2006 and again on 01/31/2007, then BW only loads the delta between 12/31/2006 to 01/31/2007 when you run data extracts. However, BW lacks the delta for many HR InfoProviders, which demands that BW execute a full load every time. It results in long load times and drains system resources.


• Turning on standard business content also requires time and resources. Activating business content takes a little longer than you may imagine. It is a good idea to use business content to prototype or pilot the work before you embark on a big custom development in BW for HR.


• Most InfoSet Query reports are based on infotypes. If this limits your reporting ability, then you may need to turn to BW. If you rely too heavily on your ABAP team for custom development, then you may find a better solution in BW. For example, PY, PSM-FM, and labor cost reporting may be easier in BW.

Create a reporting blueprint/design document around HR and payroll reporting could help you make important decisions regarding OLTP and OLAP areas. Also, the blueprint helps you to decide whether to use standard business content in BW for HR, and if so how much.

SAP BW HR Business Content

BW 3.0 and 3.5 contain standard HR business content, much of which is useful for HR reporting work. Figure 6 shows the InfoProviders from delivered HR business content. My discussion focuses on PA, BN, and PY.

Figure 6

Delivered HR InfoProviders in BW business content

Table 3 lists the InfoProviders from business content and rates their overall usability. In some cases, you may need to address your reporting needs using custom InfoProviders.

BW Customization Tips

Using BW to report on your PA and employee demographics areas often requires custom development of InfoProviders. Let me share some of my experiences around building these InfoProviders and queries.

Benefits InfoProvider (InfoCube)

The Benefits InfoCube 0PABN_C01 contains all of the required characteristics and key figures, so it is useful for benefits reporting. BN infotypes feed the key figures in this InfoCube as shown in Figure 7. I ran into one problem with this InfoCube when I wanted to take actual payroll deductions for benefits and combine that with plan data from characteristics of 0PABN_C01. For instance, the normal benefits deduction for an employee from infotype 0167 shows $35.65; however, the employee’s deduction has gone in arrears during that pay period. How do you create the report that shows the actual deduction in that month was not $35.65? In a scenario like this, you either need to resort to Payroll InfoProviders or modify the delivered Benefits InfoProvider to load the payroll deductions in key figures so the report can retrieve actual deduction amounts.

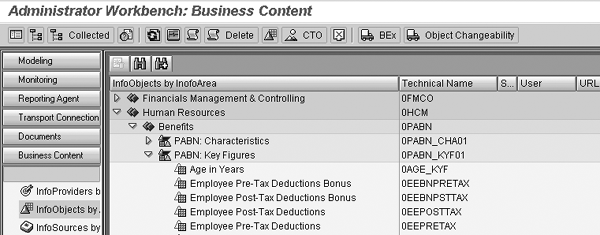

Figure 7

BN key figures

Legacy Data ODS

You should carefully plan your HR BW strategy regarding legacy data conversion. I recommend that you create an ODS object for such legacy data storage so you don’t need to worry about modeling InfoCube dimensions or creating complex validation rules. You can avoid legacy HR structure problems by dumping your legacy data into a custom ODS object. You may need many ODS objects: typically, one each for employee demographic data, payroll data, and benefits. Try to align this development with the post-go-live BW storage. For example, if you have the InfoCube 0PABN_C01 (Benefits), you may want a Benefits ODS object for legacy data. Do not forget the goal of easy reporting that combines legacy and SAP data. If you decide to create custom ODS objects, then name them the way you do in SAP R/3 with Z (e.g., ZPY_C01).

Jump Queries Between Legacy ODS and Current Data

Plan to build custom jump queries. As the name suggests, jump queries allow you to jump from one query to another. You create jump queries as you would any normal query, the difference being that one query calls another query. They may help your reporting by using both legacy ODS and post-go-live data.

Build Infotype-Based ODS Objects

To overcome the disadvantages of delivered PA business content, build ODS objects based on infotypes. Most HR users need detailed demographic reporting around infotypes and hence need an ODS object form of data. The Headcount InfoCube 0PA_C02 is not able to keep up with these challenges. Many times, users go to InfoSet queries or transaction SE16 to get data from individual infotype tables (that begin with the prefix PA) and then they use Excel or Access to perform analysis. Using that as a clue, you might create separate ODS objects for master data by module (PA, PY, BN, and PT).

Payroll

Payroll data InfoCubes and ODS objects are useful except for the time characteristics and key figures. The delivered PY InfoProviders summarize data on a monthly time line. Instead, users want the time line equal to payroll period. I recommend that you copy and modify the delivered InfoProviders to change the time characteristics.

Build MultiProviders

In government agencies or in commercial environments where different personnel areas need autonomy of data and ownership, MultiProviders can address many HR reporting challenges. Through customization, you can create ODS objects or InfoCubes for each personnel area or company code. This setup means that each company or personnel area can run its queries and the security and authorizations pertain to their individual InfoProviders. Your central office or headquarters can run a query from a MultiProvider and still report across all individual InfoProviders. Figure 8 shows a standard way in SAP BW to link multiple InfoProviders to create a MultiProvider. I linked my custom ODS objects and created a MultiProvider with all the necessary HR data.

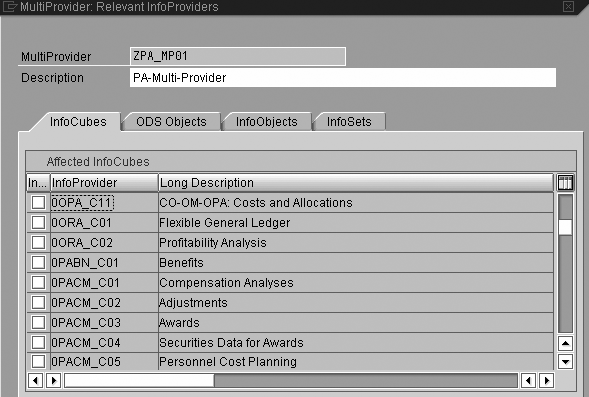

Figure 8

Create a MultiProvider by linking multiple InfoProviders

InfoSpokes

InfoSpokes are another great feature in BW. InfoSpokes are easy to create and assist users in downloading data. Earlier, I mentioned that users resort to SE16 and other download tools. InfoSpokes can assist such users in downloading data from HR InfoProviders. From Administrator Workbench (transaction RSA1), access an InfoSpoke via menu path Tools>Open Hub Service>Edit InfoSpoke. Figure 9 shows how to create an InfoSpoke using an InfoProvider — a simple process.

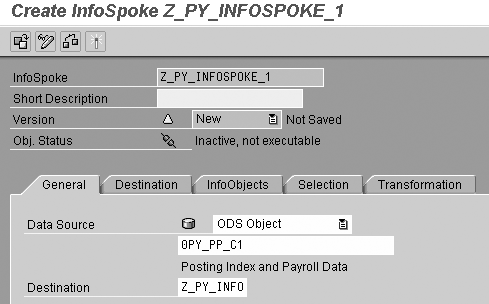

Figure 9

Create InfoSpokes from HR InfoProviders

Satish Badgi

Satish Badgi has been helping clients implement SAP ERP HCM and payroll for more than 15 years. He has been involved with large full-scale SAP ERP HCM and payroll implementations using the breadth and depth of SAP modules. Satish works for a large management and systems integration consulting firm and handles global payroll for clients. He has published two books on SAP payroll, Configuring US Benefits with SAP and Practical SAP US Payroll.

You may contact the author at sbadgi@comcast.net.
