The pricing procedure, which calculates the price of an item being sold, is one of the most powerful configurations in the R/3 Sales and Distribution (SD) module. What makes the pricing procedure so powerful is that it is flexible and provides numerous options to meet complex pricing requirements.

This is no secret to businesses that use SD, but even so, the pricing procedure has a few hidden strengths that SAP's documentation does not adequately cover. In particular, the pricing procedure has features that use statistical conditions and alternative ways of calculating the condition values that you might not be aware of. With a business case, I will demonstrate how you can exploit these capabilities to satisfy complex business requirements. The biggest advantage of using this method is that you can enrich your pricing procedure and add information without changing the existing calculations or postings. You can then use this information for further analysis without writing custom code or user exits.

First, let me review a few pricing procedure basics that are relevant to this article. Figure 1 shows an abbreviated example of typical pricing procedure, with a few components shown as columns. Put simply, a pricing procedure consists of various condition types and the total of all condition types that make the price of the item being sold (a sale price). A condition type (CType) is a category of prices, discounts, surcharges, and taxes. Typically, the value of a condition type is populated in one of two ways: by manually entering the condition value in the pricing procedure or automatically by a condition technique, which is the more popular method. I've assumed that you have a basic understanding of how the condition technique works and how the R/3 system finds condition records to calculate condition values.

The pricing procedure is read from left to right and from top to bottom. Rows with condition types are populated. Rows that I've marked with asterisks (*) get their value from calculations within the pricing procedure and typically represent the addition or subtraction of the values of higher rows. ActKy is mapped to either a revenue or discount general ledger (G/L) account.

Business Case

Let's take a typical example of tracking discounts. The pricing procedure offers a wide range of options to handle such special prices and discounts. It is common to see many condition types representing different discounts being offered. Figure 1 shows a few in row 200.

As a sales manager, I might want to analyze how seasonal discounts performed against overall discounts, or whether my seasonal discount offers really boosted my sales. With reference to Figure 1, my seasonal discounts that I want to analyze are the total of ZD11 and ZD12 (rows 110 and 125).

You might correctly argue that by keeping seasonal discount condition types together sequentially, you can easily total them (as is done in row 200). In real life, however, totaling the condition types is not as simple, because the condition types need not be arranged sequentially.

SD's little-known Stat (statistical conditions), SubTo (subtotals), and AltCTy (alternative calculation type) features allow you to tweak your pricing procedure so that you can analyze the seasonal discounts program without adversely impacting the existing pricing calculations.

Statistical Conditions

Statistical conditions are purely for informational purposes. They are not real conditions in the sense that they do not change the net pricing calculations related to billing your customer. Also, values of these statistical conditions do not post to G/L accounts when the sales order's billing document is generated. So why bother having statistical conditions in the pricing procedure?

While processing pricing procedure calculations, it may be necessary to determine and make the values in the pricing procedure available for further calculations. However, these values should not change the net value of the item. A common example is marking condition VPRS as Stat in the pricing procedure (Figure 2). VPRS represents the cost of the material (standard or moving average cost). Naturally, you do not want it to be included in the sale price calculations for the customer, but would like to see profit margin. So you make this condition statistical.

Figure 2

Statistical condition VPRS in a typical pricing procedure

Alternate Calculation Type

By default, R/3 calculates a value for each condition type using an access sequence or by manually entering the value. You can override this using the AltCTy flag in the pricing procedure. The idea of using AltCTy is that you want to ignore the default calculation method and use the alternative calculation method. Alternative calculation types are routines or rules identified by numbers. You can maintain these routines via transaction VOFM.

This option might seem strange. What is the point of having a condition type in the pricing procedure if you are going to ignore it? The primary reason is that you want to customize the calculation used.

A common example is to determine profit margin (Figure 3). Note that Profit Margin is not entered manually and cannot be derived from a condition technique. Calculating profit margin is a simple mathematical formula of revenues minus costs. SD's AltCTy routine 11 carries out this calculation. In Figure 3, komp-netwr represents the net value, and komp-wavwr represents the costs. The difference is assigned to variable xkwert, which is assigned to routine number 11.

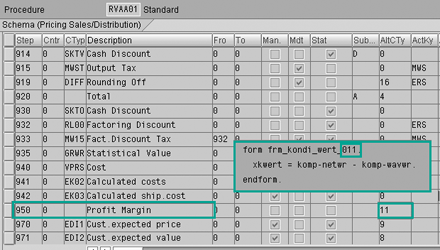

Figure 3

Profit Margin is calculated via AltCTy routine 11

Subtotals

SubTo lets you calculate and temporarily store subtotals of important condition values during the pricing calculations. You enable running subtotals by assigning SubTo variables to any row in a pricing procedure. That row's value is then stored in special fields. R/3 is delivered with more than 20 such variables designated by codes 1, 2, … 9…A, B, M, etc.

Which variable the subtotal is placed into depends on the SubTo code you specify. Figure 4 shows that the value of row 100 is carried over to SubTo variable 1, which means it stores the value in KOMP-KZWI1.

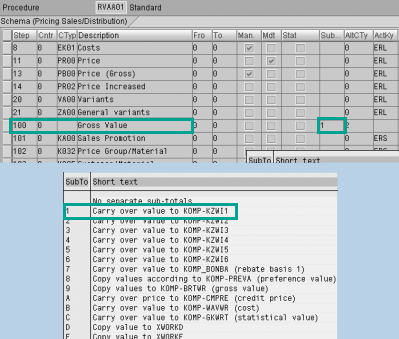

Figure 4

SubTo variables and corresponding fields

The two main objectives of subtotals are:

• Calculate the sum of more than one pricing procedure row when the rows are not sequential. For example, if you want to add the value of ZK11 and ZK12 shown in Figure 5, you would assign SubTo variable E for each of these rows. The sum of ZK11 and ZK12 is then stored in special field xworke.
• Access subtotals within an alternative calculation routine. Within an alternative calculation type, you can't refer to specific condition type values using their row numbers. Instead, you use these subtotal variables. As shown in Figure 6, subtotal variable D can be accessed in AltCTy calculations such as xworkd.

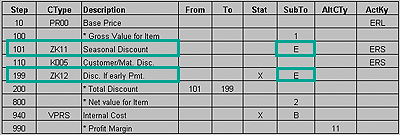

Figure 5

SubTo variable E sums the totals for ZK11 and ZK12 in xworke

Figure 6

Use of subtotal of variable D within an alternative calculation type

Solving the Business Case

Now let's use the features of these three components of pricing procedure as building blocks for implementing the methodology for my sample business case. The total of conditions ZD11 and ZD12 is temporarily stored in memory variables. You use a SubTo variable to store the value.

You need a separate condition type, say ZD99, to report the totals of ZD conditions. So that the values of ZD99 do not affect other pricing calculations, make ZD99 condition a statistical condition.

The value of ZD99 is not calculated manually or by a condition technique, but is derived based on the value of a temporary variable. To do that, an alternative calculation type routine calculates the value for ZD99. Let's put the pieces together:

Step 1. Assign SubTo variable D to rows with condition types ZD11 and ZD12. This step stores the totals of specific condition type values to a temporary variable, which in turn can be used for further calculations. Use transaction V/08 to assign SubTo variable D to these rows. This causes R/3 to store the total values of ZD11 and ZD12 in the temporary variable xworkd. You will later use this variable in our AltCTy calculations. Note that the variable xworkd adds (accumulates) the values of condition types ZD11 and ZD12 and the total is stored for further calculations.

Step 2. Use transaction VOFM to create a user-defined Condition value formula routine (transaction VOFM> Formulas>Condition value) and assign a customer-range number, say 991. The objective of this step is that the value of xworkd (the total of ZD11 and ZD12) can be assigned to a condition type as an alternative method. Add a code assigning the variable xworkd, as shown below. Save and activate the routine (Edit>Activate).

Figure 6

Use of subtotal of variable D within an alternative calculation type

Step 3. Create a condition type ZD99 (transaction V/06). The objective here is that condition type ZD99 is used as the placeholder to calculate the totals of the condition types ZD11 and ZD12. Copy the condition type PR00 (highlight the PR00 row and then choose from the menu bar Edit>Copy as). You do not need an access sequence, as its value is calculated separately with the help of a routine as described in step 2. ZD99 is used for storing a value. So blank out any value in the Access Sequence field that was copied into your ZD99 condition type and then save.

Step 4. Assemble the above building blocks to tweak the pricing procedure. Use transaction V/08 and follow these steps:

1. Add a condition type ZD99 to the pricing procedure as a separate row, say row 850.
2. Mark the ZD99 condition as Stat for row 850, as you don't want its calculations to adversely influence the pricing calculations. Remember, the statistical conditions do not change the net value calculations and do not post to G/L accounts. Your FI account postings — i.e., revenue account determinations — are not affected.
3. Specify 991 in the AltCTy field for row 850, so that system knows that the value of ZD99 is derived by an alternative formula. VOFM routine 991, created in step 2, assigns the value of variable xworkd to condition type ZD99.
4. Assign SubTo variable 6 for row 850. Recall that the values of variables 1 to 6 are permanently stored in table VBAP. The value of ZD99 is stored in table VBAP-KZWI6, which in turn can be transferred to BW for further reporting if required.

The revised pricing procedure looks like Figure 7.

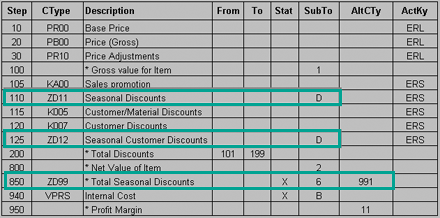

Figure 7

Tweaked pricing procedure to determine the total seasonal discounts

As the sales orders are processed, the calculations are done with tweaked pricing procedure and the total seasonal discounts are stored in table VBAP in field KZWI6. As this information is available in an R/3 table, you can easily review it by using transaction SE16, designing a custom report, or exporting data to BW to create a report.
