The Sarbanes-Oxley Act of 2002 requires that companies have controls in place for important business processes. A key process on the operational side is the requisition-to-pay (R2P) business cycle. You can use SAP-enabled controls at several points in the R2P process. I'll describe how you might implement two: recording a purchase requisition and releasing a purchase requisition. Both are R/3 MM configuration controls applicable to all releases of R/3. First, let me provide a quick overview of the R2P business cycle.

The R2P business cycle shown in Figure 1 involves several departments, SAP R/3 modules, and events. The diagram also illustrates common cycle events that trigger financially relevant transactions. The typical R2P transaction flow begins when a user or an external activity (e.g., MRP or SD) requires the company to purchase goods or services. The R/3 requisition is entered via ME51 (Create Purchase Requisition). The R/3 requisition is typically held for formal release (i.e., authorization) via ME54 (Release Purchase Requisition), which is dependent upon your configuration in the IMG

Figure 1

R2P business cycle

After the R/3 requisition has been formally released, the purchasing department converts and sources the R/3 requisition into a formal R/3 purchase order (PO) using ME21. The R/3 PO should also require release via ME28 or ME29 prior to forwarding it to a vendor. The PO release procedures are also dependent on your IMG configuration. If R/3 is configured to automatically release POs, then independent monitoring controls should be implemented to help ensure POs that do not reference a previous SAP-approved R/3 requisition are authorized.

The vendor fills the PO and ships the supplies or provides services specified on the PO. Company-authorized personnel process a goods receipt via MIGO (Goods Movement) or service receipt via ML81 (Maintain Service Entry Sheet), which should reference back to the R/3 PO. R/3 typically generates accounting entries based on PO line-item information (debit entry) and automatic posting procedures (credit entry — goods receipt/invoice receipt [GR/IR]) configured in IMG.

The vendor invoice is routed to accounts payable, where company-authorized personnel enter the vendor invoice through MIRO (Enter Invoice). If configured, several R/3 verification routines help ensure the vendor invoice matches the authorized PO and actual goods/service receipt (e.g., three-way match). Accounting entries are generated from the automatic posting procedures (debit entry — GR/IR) configured in IMG and the reconciliation account stored in the vendor master record (credit entry).

Transaction F110 (Automatic Payment Proposal) identifies vendor invoices for payment based on the payment terms recorded on the vendor invoice. The vendor invoice payment terms are usually transferred directly from the vendor master record. However, these payment terms can be changed during vendor invoice entry if the configuration permits this modification. Payment run accounting entries are generated based on the reconciliation account stored in the vendor master record (debit entry) and automatic posting procedures (credit entry — GR/IR) configured in the IMG.

Example 1: Recording Purchase Requisitions

This control example relates to purchase requisitions, but the same configuration capabilities are enabled through different configuration transactions for other purchasing documents (purchase order, request for quotation, outline agreements), master data (vendor and material), and events (receiving, vendor invoice processing).

The SEC's Section 404 regulation states that businesses must provide reasonable assurance that transactions are recorded. This requires reliable and consistent data-input controls.

Within the IMG, companies can configure multiple purchase requisition document types via transaction OMEB, allowing them to group and specify more precisely completed requisitions (Figure 2). Understanding the purpose of each configured purchase-requisition document type helps you document the R2P business cycle, and it can also help you determine the required controls for further R2P processing. For example, you may have a purchasing document type for each of the following purchase requisition types: entered directly, initiated from MRP, resulting from Project Systems (PS) activity, or originating in non-SAP systems or external groups.

Figure 2

Purchase-requisition document types and field selection keys

Each purchase-requisition document type usually has a field-selection key identified that specifies the data-entry requirements for completing a purchase requisition. Field-selection keys, if properly configured, are excellent controls over initiating and recording transactions that ultimately find their way to the financial statements. Also, ensuring that data is completely and accurately captured at the beginning of the R2P cycle increases the likelihood that resulting financial transactions are properly authorized and recorded.

Field-selection keys are assigned to purchase-requisition document types via transaction OMEB and can apply to one or more purchase-requisition document type. For example, purchase-requisition document type NB is configured to specify the data entry rules through screen layout rule NBB that determine which fields are optional, required, or displayed. If a purchase-requisition document type does not have a field-selection key assigned to it, then a default field-selection key assigned to the transaction (e.g., ME51) may apply.

Purchase-requisition field-selection keys are configured in OMF2. When you first enter the transaction, you are presented with a list of configured keys as shown in Figure 3 on the next page. Locate the field-selection key (i.e., NBB) identified in OMEB by scrolling down the list.

Figure 3

Configured field-selection keys

Double-clicking on the NBB field-selection rule displays seven field-selection groups, or sections, associated with a purchase requisition. Double-clicking on each field-selection group displays the rules associated with each data field on the purchase requisition. The configured rules should be reviewed and matched to company policy to help ensure proper data-capture rules are in place. Figure 4 on the next page depicts the GR/IR control data-entry requirements, accessed via transaction OMF2, for purchase-requisition document type NB.

Figure 4

GR/IR control data-entry requirements for purchase-requisition document type NB

The screen layout capabilities available in R/3 can also assist a company in achieving other Sarbanes-Oxley, operational, and compliance objectives by helping to ensure complete and accurate data-entry processing. These data-entry requirements are optional in R/3 and require you to configure the data-entry rules to match corporate objectives.

Example 2: Releasing Purchase Requisitions

A second objective found in the SEC's Section 404 regulation states that controls should “reasonably assure” that receipts and expenditures are properly authorized. Rightly or wrongly, receiving and A/P personnel tend to presume that their vendor invoices are authorized if an open purchase order exists in the system.¹

This presumption is dependent on up-front purchasing controls to help ensure proper authorization of purchasing documents prior to receiving or A/P events. R/3 implements purchasing document (purchase requisition, purchase orders, and so on) authorization through configured release procedures that are then linked to security to effect proper authorization. R/3 provides two methods of releasing a purchase requisition: without classification and with classification.

In my experience, most organizations implement release procedures with classification, since it provides more flexibility in establishing the purchase requisition approval business rules and allows them to replace manual authorization procedures with electronic sign-off. As Figure 5 shows, you can establish multiple release strategies based on multiple criteria via transaction OMGQ.

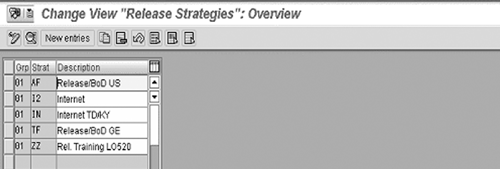

Figure 5

Release procedures with classification

These release strategies should be mapped to company policies that describe the level of authorities assigned to various employees and then evaluated to ensure compliance. To evaluate, double-click on each release strategy and click on the Release statuses and Classification buttons.

The Release statuses button indicates what release codes have to be applied to the purchase requisition before it is released to purchasing for processing. In this example (Figure 6 on the next page), authorized personnel assign the release code Z2 (through R/3 security) to requisition via ME54 (or other release transactions) before purchasing can reference the purchase requisition in a purchase order.

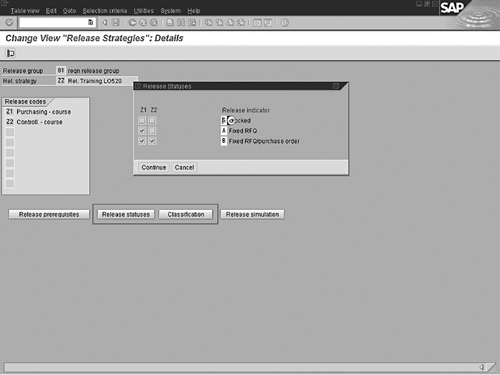

Figure 6

To evaluate a release strategy, click on Release statuses and then Classification

The classification schemas can vary and are typically configured to match your company's purchase approval policies. R/3 uses these classification schemas to determine which, if any, release strategy applies to a purchase requisition. In this example (Figure 7), a purchase requisition must meet several requirements for the release strategy to apply. When assessing release strategies, consider whether they help achieve company purchase authorization policies. I have found several instances where the configured release strategies permitted several purchase requisitions to go through without required release procedures (i.e., automatic release).

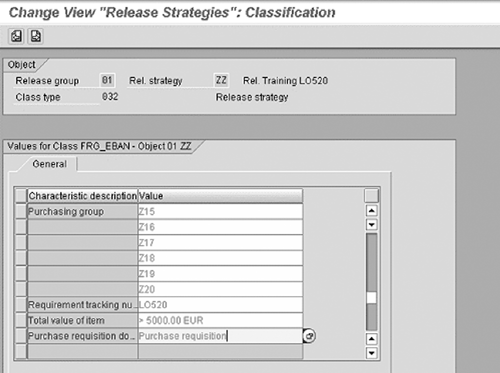

Figure 7

Release strategy classification

You have more aspects to consider when evaluating release procedures than I can cover here, but working with IT personnel to document and test release procedure configuration controls can help provide reasonable assurance regarding prevention of unauthorized acquisition of goods/services. Additionally, you need to review SAP security to determine who is authorized to release purchase requisitions with the above release strategy.

Several required authorization objects with mandatory field values affect the release of a purchase requisition via ME54 (Release Requisition). Two authorization objects are critical. If you can identify individuals with two authorization objects and the mandatory field values, then the probability that they can release a purchase requisition to purchasing is high. Use transaction SUIM and enter the following authorization object and mandatory field values to help identify individuals who can release a purchase requisition to purchasing using the release strategy depicted in Figure 6:

¹ I do not cover the processing of vendor invoices that do not reference a purchase order. Other security, configuration, and monitoring controls address these transactions.
