I'm going to provide an overview of the Profitability Analysis (CO-PA) module, especially from sales point of view. I will elaborate on how closely SD and CO-PA are integrated. The primary focus of CO-PA is market-oriented, particularly from a sales management point of view. Many of the SD configuration settings influence significantly how and what data flows to CO-PA. Understanding the close integration is critical, especially to SD analysts, as many of these processes influence how profitability can be managed. This functionality is very basic, thus the information I'll give you is applicable to all versions of SAP.

Customer Profitability

As the name suggests, the primary objective of CO-PA is profitability analysis. CO-PA lets you understand where your profits originate. It provides information you need to make strategic business decisions and to answer questions, such as:

• What are my most profitable customers?

• What are my most profitable product lines?

• What are the profit margins of my business segments?

The goal of the CO-PA ledger is to track and analyze profitability, especially for business segments. Usual examples of business segments can be customers, product lines, organizational units, regions, or a combination of these.

The primary goal is to search the relationship between profits and the potential source of those profits. The profits can be from product revenue, service revenues, or other revenue streams. Product costs and other overhead costs are also involved. The CO-PA ledger has individual columns for each of these amount fields, known as value fields. By comparison, the origins of these profit values are called "characteristics." Examples of characteristics are customer, product line, and sales area.

As shown in Figure 1, the CO-PA ledger contains characteristics and value fields.

• Characteristics are fields that describe who, what, where, or when.

• Value fields are actual numeric values that quantify revenue or cost.

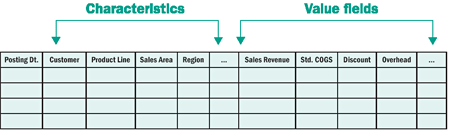

Figure 1

CO-PA ledger structure with characteristics and value fields

What makes the CO-PA ledger more flexible and robust than other ledgers (e.g., General Ledger [G/L] or Special Purpose Ledger) is that you can design the structure of CO-PA as you wish. The structure of other financial ledgers is predefined, whereas you can design the CO-PA structure depending on your own requirements. Say that in your organization, you put more emphasis on customer-related characteristics (for example, sales office, customer group, or sales group). You can include these characteristics in your CO-PA ledger, whereas someone else might add product-related characteristics for their analysis.

Data Flow to CO-PA

SD and CO-PA are closely connected. The revenues/costs and other profit information from SD are transferred to CO-PA. The billing document or invoice acts as the most basic integration point. The CO-PA ledger is updated with relevant information upon invoicing in SD. At the time of billing, revenues, discounts, and cost of goods sold (COGS) are transferred to the CO-PA ledger, as shown in Figure 2.

Figure 2

Invoice/billing documents are posted to CO-PA

In addition to billing documents, you can also configure the system to transfer sales orders to CO-PA, as shown in Figure 3. Transferring sales orders to CO-PA can provide an early estimate of the anticipated revenues before the sales order is completed.

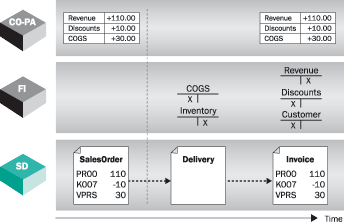

Figure 3

Incoming sales orders can be transferred to CO-PA

When the sales orders or invoices are posted, the system transfers the profitability related information to CO-PA. The characteristics from the source documents are transferred. Additional information from the customer master (for example, customer group, sales office, or sales group) and product master (for example, product hierarchy or material group) can also be transferred based on the source transaction and transferred to CO-PA.

CO-PA lets you derive additional information — for example, the definition of strategic business units (SBUs).

Various amounts, such as gross revenues, discounts, costs, and estimated sales commissions, are transferred to CO-PA value fields. The profitability data (characteristics and value fields) are represented as multi-dimensional cubes, as shown in Figure 4. The profitability segments represent specific combinations of characteristic values — for example, "Retail customer from high-tech unit from the Southern region."

Figure 4

Profitability data flow from SD to CO-PA

SD and CO-PA Integration

Now that I have shown the basics of how data flows to CO-PA, let's cover some of the details. I'll start with how data from the source document (for example, invoices) flows to CO-PA. In SD, the information from a sales invoice is stored in condition types — prices, discounts, and surcharges. In CO-PA, the information is arranged as columns, known as "value fields."

The condition types from SD are mapped to value fields in CO-PA, as shown in Figure 5. In a standard system, the usual notations for condition types are PR00 for prices, K007 for discounts, and VPRS for costs. Condition types are the bridge between SD and CO-PA.

Figure 5

SD condition types are mapped to CO-PA value fields

Note that many SD condition types can be mapped to the same CO-PA value fields. For example, if you have multiple conditions for customer discounts, you can still manage customer discounts as one value field in CO-PA.

With this type of mapping of SD conditions to CO-PA value fields, SD can have a large number of condition types, making analysis of them unwieldy. Mapping multiple SD conditions to a smaller, manageable number of CO-PA value fields makes data easier to analyze, as shown in Figure 6. Note that it does not make sense to have one SD condition type mapped to multiple CO- PA value fields.

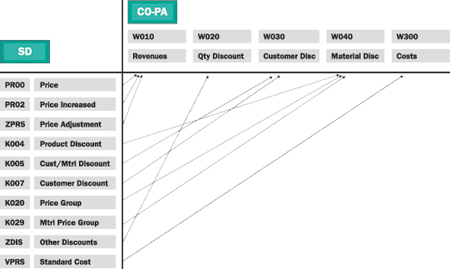

Figure 6

Mapping of multiple SD conditions to CO-PA value fields

From a customization point of view, the configuration of mapping SD condition types to CO-PA value fields is done in CO-PA customizing via menu path Flow of actual values>Transfer of Billing Documents>Assign Value Fields> Maintain assignment of SD conditions> CO-PA value fields or transaction KE4I, as shown in Figure 7.

Figure 7

Mapping of SD condition types to CO-PA value fields

Which SD Conditions Are Transferred to CO-PA?

Not all conditions from an invoice are transferred to the CO-PA ledger. For example, tax conditions are not transferred. The reason is that taxes are regulatory requirements. Since you don't have control over taxes, you cannot change them to influence customer profitability. The following rules are applied to transferring SD conditions to CO- PA.

• SD conditions that are for revenues and discounts are transferred. (From an accounting point of view, revenue and discounts accounts are created in CO with cost element categories 11 – revenue elements and 12 – sales deduction).

• Tax conditions are not posted to CO-PA. It may appear that taxes would be transferred to CO-PA; however, tax conditions are in fact not transferred to CO-PA. The reason is that, as an organization, you cannot control profitability based on tax structures.

• Only active conditions are moved to CO-PA; inactive conditions are not.

• Conditions defined as "statistical conditions" are transferred to CO-PA. Statistical conditions are marked accordingly in the pricing procedures.

Planning in CO-PA

Sales and profit planning is part of overall business planning. CO-PA offers robust features to perform planning. In addition to the data flow of actual values, you can also enter the plan data into CO-PA manually, or you could import plan data from Sales and Operations Planning (SOP) to CO-PA.

Using the planning features in CO-PA, you can do plan-vs.-actual comparisons for business segments. For example, you can plan revenues, discounts, and costs, at the customer-group level. When actual values are posted, you can compare them to determine if you really met your margin targets.

CO-PA also offers tools and methodologies for automatic planning — for copying actual data to plan, copying plan data from one version to another,

top-down distribution, and revaluation. Instead of always entering the plan data from scratch, you may want to start your planning process by comparing plan and actual.

By copying actual data as plan data, you can create the base for further planning. Planning versions offer you different scenarios — for example, one plan version can be the best-case scenario, whereas another planning version can be worst-case scenario. By copying plan data among different plan versions, you can manage the planning process easily. With top-down distribution, you plan the profitability at the product-group level, for example, and the system calculates the planned profitability at the product level.

Using revaluation, the planned profitability can be revalued — i.e., recalculated. For example, say you want to increase the price by 10 percent. Instead of changing the prices manually, revaluation of the profitability calculations is done automatically.

Profitability Reporting

The core competency of CO-PA is determining the profitability at the market- segment level. The integrated business model of CO-PA offers different value flows, which allocate revenues and costs to profitability segments. In addition to accurately determining the profitability information, CO-PA also provides flexible reporting options. The drill-down reporting engine in CO-PA offers various online analytical processing (OLAP) features, such as drill-down, sorts, slice-and-dice, overview-detailed list, exceptions reporting, period breakdown, and information on the origin of data.

As shown in Figure 8, you can analyze how retail customers in Southern regions performed within high-tech business units. For example, the slice-and-dice and drill-downs are valuable reporting features for exceptions processing.

Figure 8

Drill-down reporting for characteristics

Mitresh Kundalia

Mitresh Kundalia heads the SAP practice at Quality Systems & Software (www.QSandS.com), a consulting firm specializing in SAP S/4HANA, SAP General Ledger, and complex System Landscape Optimization (SLO)-type reorganizations. Mitresh is widely acknowledged as a leading SAP expert, with multiple publications and an SAP-PRESS book to his credit. He has published more than 50 peer-reviewed articles and white papers, and he has given presentations at various SAP conferences and events. Mitresh is the chief solutions architect of General Ledger Migration Optimizer (GLMO), a leading product to accelerate and jump-start the SAP S/4HANA and SAP General Ledger initiatives; SAP Data Reorganization Optimizer (SDRO), an SLO-type product for managing complex system landscape reorganizations; and Group Currency Activation and Conversion (GCAC), a product suite to manage introduction of parallel currencies and conversion of data in a live SAP system.

You may contact the author at Mitresh@QSandS.com.

If you have comments about this article or publication, or would like to submit an article idea, please contact the editor.
