SAP BW-Business Planning and Simulation (BPS) provides tools via transaction BPS_WB that allow you to customize BPS planning applications that you want to present to the end user via a Web session. SAP provides standard Web interface development tools such as function buttons, tab strips, and containers for specific objects. However, the standard solution does not provide a number of custom effects. You can achieve some of these effects by using JavaScript-based commands to enhance your scrolling abilities.

We’ll present a brief example to explain different scrolling capabilities and limitations and then show you the three phases of work you need to undertake to implement the capabilities you want to have. We’ll also show you the logic of the scrolling solution.

We provide JavaScript commands in the code available for download at this link. You can easily incorporate these commands into most Web interfaces during the Web interface configuration. The use of this modification code technique is applicable to all BW-BPS Web Interface Builder functionality found within BW-BPS 3.5 through BW-BPS 6.0.

Example Showing the JavaScript Command Effect

As you can see in Figure 1, the layout extends further right than the browser can accommodate, so the browser adds its own scroll bar to compensate. Using the browser scroll bar does not allow control over which columns are scrollable. From a user perspective, it can become very easy to forget which line (or account, in this example) the user is viewing (Figure 2). Figure 3 shows the screen after adding the JavaScript controls. Because the new scroll bar is set to custom width and height requirements, the browser did not need to automatically add its own scroll bar. Figure 4 shows that the lead columns remain visible after scrolling.

Figure 1

Before addition of JavaScript scrolling controls, initial screen

Figure 2

Before addition of JavaScript scrolling controls, scrolled to middle

Figure 3

After addition of JavaScript scrolling controls, before scrolling

Figure 4

After addition of JavaScript scrolling controls, after scrolling

This feature handles multiple layout types, in different containers or tabs, with headers or footers. It only adjusts layouts that are currently displayed to the user. It automatically resizes vertically and horizontally to accommodate layouts that are smaller than the dimension passed to the code. It also automatically resizes to the width of the browser window if, when the interface is loaded, the browser window is smaller than the width passed to the code.

One practical limitation is that this does not support, for example, input fields, radio buttons, and selects in the fixed columns. You can display these items, but they do not actually update the data. There could also be a slight misalignment (a few pixels) between the frozen header and frozen body. However, the end user should not be able to see this. As there are many variations of layout configuration, you should thoroughly test use of this modification code for the specific application.

Implementing the custom scroll features requires three phases of work:

• Install JavaScript code to identify user-specific browser width settings


• Install JavaScript code to include customized scrolling capability


• Modify code to specify which layouts to customize and define size limitations

Install JavaScript code to identify user-specific browser width settings. First, you need to set the page element property Arrangement in Table Form to false, as shown in Figure 5. When the value of this property is equal to true, everything on the page is contained within a table element. Calculating cell dimensions is not supported when the JavaScript code is contained within a table.

Figure 5

Set the page element property Arrangement in Table Form to false

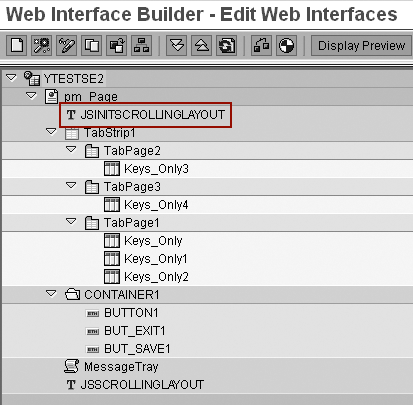

You need to install the first program, JSINITSCROLLINGLAYOUT, at the beginning of the Web interface, directly under the page element definition (Figure 6). This ensures that the JSINITSCROLLINGLAYOUT program can determine the width of the browser window, before it is resized by any subsequent page components.

Figure 6

Install JSINITSCROLLINGLAYOUT

Install JavaScript code to include customized scrolling capability. Then you need to install the second program, JSSCROLLINGLAYOUT, at the end of the page definition (Figure 7). This ensures that all page components are available to the JavaScript program.

Figure 7

Install JSSCROLLINGLAYOUT

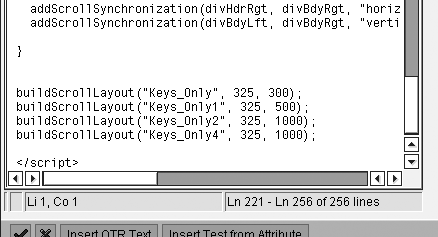

Modify code to specify which layouts to customize and define size limitations. You need to modify the program JSSCROLLINGLAYOUT to specify the layouts to be modified with custom scroll capability as well as any unique size requirements. These actions are specific with the last few lines of the program, and are in the format of:

buildScrollLayout("technical name of layout in the Web Interface Builder “, vertical sizing parameter, horizontal sizing parameter);

See Figure 8 for an example. You need a separate line entry to customize each layout. Figure 9 shows an example that illustrates the result of entering different horizontal sizing parameters for the same layout. Depending on the overall Web interface design, the horizontal parameter setting allows the developer maximum design flexibility to present many columns of data as well as simultaneously ensuring that the lead columns of the layout are always visible. The ability to continuously view the lead columns allows end users to maintain relevancy of the data that they are viewing.

Figure 8

Modify the program

Figure 9

Horizontal sizing example

Figure 10 shows an example that illustrates the result of entering different vertical sizing parameters for the same layout. Note that you can set the parameter settings to allow the end user to view as little as one row of data at a time, or as many rows as desirable. The use of vertical scrolling again allows maximum flexibility in the Web interface design.

Figure 10

Vertical sizing example

Examine the Logic of the Scrolling Solution

The following 12 steps describe the process the JavaScript program uses to identify, position, and synchronize the scrolling among the four main components of the original layout (Figure 11). (These are not steps the developer needs to take.)

Figure 11

Solution components

Step 1. Determine the size of the browser window.

Step 2. Create the TABBDYRGT table, or scrolling body. Create a reference, called TABBDYRGT, to the original layout. Find the height and width of the original layout in preparation for the partitioning of the layout into the four sections described above (DIVHDRLFT, DIVHDRRGT, DIVBDYLFT, and DIVBDYRGT).

Step 3. Create the TABBDYLFT table, or frozen body. Copy the entire original table (TABBDYRGT) to a new table called TABBDYLFT. Then clear the events for all input fields in TABBDYLFT. You need to do this because when the original table is copied, the events for input fields are also copied. When duplicate events exist on a page, Internet Explorer only recognizes the first named event. Therefore, if events aren’t cleared, input fields would only work on the frozen section of the table (TABBDYLFT). For this reason, the current solution does not support input fields in the frozen section.

Step 4. Create the TABHDRLFT table, or the frozen header. Determine the number of frozen columns by calculating the number of columns in the second row of the original table that have the frozen column style (SAPBEXCHATEXT). Copy this number of cells from the column header of the original table. Set the height and width of these cells equal to the same cells in the original table.

Step 5. Create the TABHDRRGT table, or the scrolling header. Copy the first row of the original layout to a new table called TABHDRRGT. Set the dimensions of the cells, in both TABHDRLFT and TABHDRRGT, equal to the dimensions of the cells in the second row of the original layout.

Step 6. Create four division (div) HTML elements (block-level containers) that you use to hold and hide portions of the tables, which you created in steps 2-5.

Step 7. Create a new table and add the four div elements (Figure 11).

Step 8. Set the styles and dimensions of the four div elements. The system calculates the width so that it does not exceed the width of the browser window.

Step 9. Add the four tables to the div elements.

Step 10. Position tables TABBDYRGT, TABBDYLFT, and TABHDRRGT in their respective div elements to hide portions of the tables (Figure 12).

Figure 12

Positioning of tables with div elements

Step 11. If a footer exists on the original layout, move the footer from the original layout to a new table called TABFOOTER. Add this TABFOOTER table to DIVBDYLFT and make it float above the other tables (Figure 13).

Figure 13

Final solution with floating footer

Step 12. Set up synchronized scrolling so that if a scrolling event occurs in DIVBDYRGT, then DIVHDRRGT and DIVBDYLFT are scrolled the same amount.
