Let us share with you the challenges McKesson faced and the lessons learned with respect to the GATP aspect of the implementation. We’ll also explain why we upgraded to SAP SCM 5.0 and what we had to do for our systems to accommodate this upgrade. We will highlight the functional and technical challenges faced in the design, infrastructure planning (hardware sizing), and rollout strategy. We will also discuss our implementation approach as well as solutions for overcoming challenges faced during our implementation.

About McKesson

McKesson is one of the nation’s leading healthcare services companies, which delivers medicines, medical supplies, and health information technology to patients in a variety of healthcare settings. Headquartered in San Francisco, CA, McKesson employs more than 32,000 people worldwide. McKesson Pharmaceutical, the largest business unit, operates 33 distribution centers and services over 36,000 customers. Each distribution center houses about 25,000 items. We process an average of 100,000 orders daily and roughly 1.5 million line items daily. As such, our company produces the largest volume of transactions by industry standards.

GATP is a cornerstone to the entire SCM process at McKesson. Before we started this project, we had a legacy system and SAP SCM 4.1. One of the reasons we looked at GATP was that our legacy order fulfillment process did not provide us the flexibility to do backorder processing. This forced us to use a “fill or kill” order fulfillment strategy, which limited us to filling orders with the inventory on hand. In this old system, customers were notified when inventory was unavailable and were accustomed to reordering the product the next day. The implementation of the GATP module in SAP SCM gave us the flexibility to move to an order fulfillment system with backorder processing, in turn, allowing us to maximize revenue and increase customer satisfaction. Figures 1 and 2 illustrate how our systems looked before and after GATP.

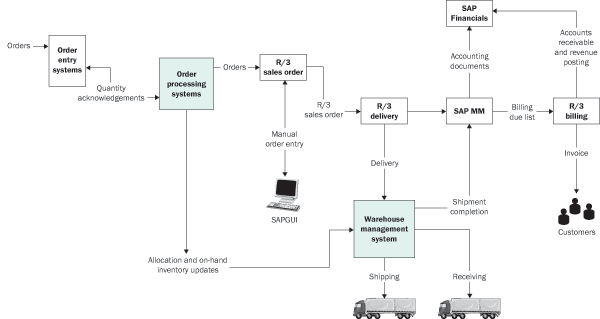

Figure 1

Pre-GATP order process

Figure 2

Post-GATP order process with SAP APO

Implementation Approach

GATP provided one of the greatest challenges in using the SAP SCM module because we had such a large number of order lines. Our project included product and location substitution — through rules-based ATP — and product allocations. For the product and location substitution, we replaced complex legacy program logic through configurable rules-based ATP schemas. We set up condition-based rules to support substitution to alternate products or supply desired products from alternate locations in our distribution center network. Product allocations allowed us to control how we allocated products from alternate locations when the products were out of stock (or not stocked at all) at the customer’s home distribution center.

Figure 3 shows our SAP landscape and Figure 4 shows the new hardware required for the SAP SCM 5.0 upgrade. We assumed that the GATP application would scale to our volume in the performance testing environment in SAP SCM 4.1. Therefore, we presumed that we could transmit the performance test results to production environments. We kept the performance test systems in sync with changes we made to the production system. This ensured that our performance test systems were always updated when we needed to do our performance testing.

Figure 3

System landscape prior to the SCM upgrade

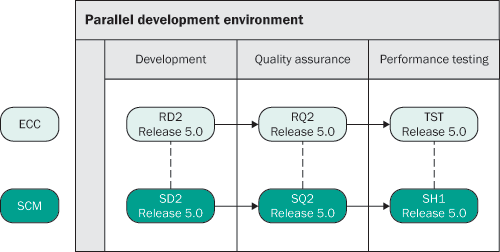

Figure 4

New system landscape created for the SCM 5.0 upgrade

Rollout Strategy

Our rollout strategy involved rolling out Core Interface (CIF) for materials, sales orders, stock, and purchase orders. We also activated the ATP model for all distribution centers, as required for a GATP implementation. However, as a result of unforeseen challenges, some of which are described later in the article, we’ve delayed the rollout of additional distribution centers until the fall of 2007.

The major challenge of the implementation was implementing GATP in a fully operational environment. The order processing needed to gradually migrate from the old to the new GATP system. As both systems made inventory decisions regarding the same pool of inventory, the inventory had to be fully synchronized between the systems on a real-time basis.

To mitigate the impact on our customers and on our business, we planned to roll out order confirmations based on GATP by customer and distribution center. With this method, SAP SCM became the system of record for all inventory allocation decisions for the test distribution center. Pre-selected customers at this test distribution center received order confirmations from SCM GATP when they placed orders. All other customers continued to receive their confirmations from our legacy systems.

In addition, to ensure accuracy in product allocations and product availability checks, these orders executed neutral product allocation checks in GATP. Neutral checking is a process in which SCM performs a GATP check, but at the end of the process, material quantity for the order is reserved or removed from inventory — even if the amount should have been lower after all the GATP rules were checked. This approach works best when you roll out the GATP implementation over a long period of time and you have another system that is the system of record during the rollout. This ensures that the system of record controls the amount of inventory allocated to an order.

Our rollout strategy was to convert customers in an individual distribution center over a predefined period of time, so we expected the impact to be relatively small. Our strategy was based on a small number of customers with a few thousand orders. However, with neutral ATP checks in place, we were essentially going live with GATP for all customers. Therefore every customer’s order would have to do a call to GATP. “Neutral” only meant the confirmation of quantities would come from our legacy system. This alone caused a huge impact, the magnitude of which became apparent during performance testing. We were actually going live with a big bang approach for all distribution centers.

This strategy caused our SAP ERP Central Component (ECC) system to slow down. Working with SAP support, we determined that the tables that CIF, BW, and other applications used for communication purposes needed special index management. In response, we revised the rollout strategy by decoupling the CIF model activation by distribution center and application.

First, we identified all the distribution centers servicing the customers that would be receiving confirmations from GATP. Second, we activated sales orders, POs, stock, and ATP check CIF models by distribution center (one at a time), which allowed us to monitor our systems for any issues before we put the next distribution center on the CIF. Finally, we reviewed and managed indexes for ARFC tables (tables ARFCSSTATE and ARFCSDATA). This review has become an ongoing process.

We carried out performance testing by upgrading our test environment to handle 120% of our current production sales order volume. During our performance testing, we determined that the scalability of the GATP application could not be proven for our full volume of sales order line items and would not meet our service level requirements for performance.

We also encountered a problem in our object management system, in which locking in liveCache caused IDocs to fail and prevented orders from being confirmed. SAP recommended that we upgrade to SAP SCM 5.0 to resolve this. As a result of the problems we ran into, we revised our implementation as described in the next section.

Revised Implementation Approach

Here are the three steps we followed in our revised implementation:

Step 1. Upgrade to SAP SCM 5.0

Step 2. Obtain additional hardware for full scalability testing

Step 3. Schedule scalability testing

Step 1. Upgrade to SAP SCM 5.0. As part of the upgrade, we had to procure additional hardware for SCM and ECC development. Both systems allowed us to develop for the upgrade without breaking our current path to production. As required when upgrading to SAP SCM 5.0, we also had to apply Support Packages to ECC for plug-in support to bring us to current Support Package levels. Table 1 lists the key Support Packages. We didn’t require any new functionality from SCM 5.0 — we upgraded strictly to alleviate technical issues related to SAP SCM 4.1.

Step 2. Obtain additional hardware for full scalability testing. This hardware reflects the exact production environment for ECC and SCM.

Step 3. Schedule scalability testing. Based on discussions with SAP, who was our partner in the performance testing, we scheduled six weeks of testing.

Issues, Solutions, and Lessons Learned

Here are two important lessons learned from this point in the project.

Lesson 1. Don’t assume that SAP will continue to support an undocumented feature from a previous release. Partial confirmations are no longer allowed with user exit EXIT_/SAPAPO/SAPLATPT_002. In SCM 4.1, this user exit allowed us to manipulate order quantities. To rectify this, we implemented pre-selection for items that we cannot confirm with rules-based ATP (RBA) in EXIT_/SAPAPO/- SAPLATPT_002.

Lesson 2. Communicate with the business partners and external cust­omers. Extensive communication, which is our standard procedure, was even more vital to mitigate potential customer impact. It also helped us manage expec­tations when we changed our strategy or time frame.

Where Are We Heading From Here?

We successfully completed our go-live with SCM 5.0 in June 2007. Scalability testing is scheduled to end in mid-to-late summer 2007. If we achieve our performance goals from the scalability testing, we will continue rolling out with more customers and distribution centers. We are in the process of executing a full scalability test, partnering with SAP. If the test is successful, we expect to complete the rollout of all customers and distribution centers within the next 12 months. We are pleased with the current state of the project and are excited about the opportunities ahead as we continue down this path.
