Organizations generally have custom-developed programs for business requirements that are not met in a standard SAP system (e.g., converting a credit card file from a bank into a format that an SAP system can recognize, such as KR1025 or GL1025). These custom-developed programs are not needed when business requirements are met by a standard SAP system or when a business relies on an easy manual workaround or uses a third-party tool. This program needs to be incorporated into the period-end closing activities (Closing Cockpit) to ensure an end-to-end process. In my example, the end-to-process begins with receiving the credit card file from the bank, moves to uploading the file into an SAP system, and ends with posting the file in an SAP system.

This article focuses only on the aspect of linking custom-developed programs to the Closing Cockpit.

The prerequisite is to register the custom-developed program for the Closing Cockpit into table SCMAPROGRAMS. Execute transaction SM30 or use cockpit transaction CLOCOC and follow menu path Goto > Register Program for Closing Cockpit. Enter the table name as SCMAPROGRAMS. Click the Maintain button (Figure 1).

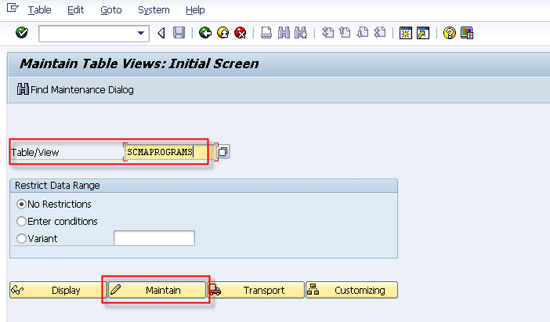

Figure 1

Maintain table SCMAPROGRAMS

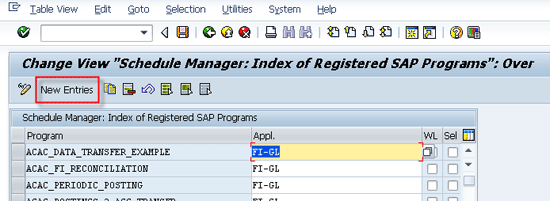

In the next screen, click the New Entries button as shown in Figure 2.

Figure 2

Create a new entry for a custom-developed program for the Closing Cockpit

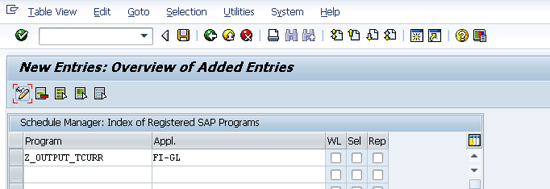

On the next screen, maintain your custom-developed program and application area as CUSTOMER or a specific relevant application area (e.g., FI-GL as shown in Figure 3). Save the changes to your transport request by clicking the save icon. (The changes done here are client independent, so it applies to all clients of the same SAP system immediately.)

Figure 3

Register a custom-developed program for Closing Cockpit

There are two options to link custom-developed programs to the Closing Cockpit:

• Enhance custom-developed programs with source code changes
• Use the SCMABOX program to link custom-developed programs

Option 1: Enhance Custom-Developed Programs  with Source Code Changes

To ensure that custom-developed programs behave the same way that the standard program does in the Closing Cockpit and displays information (e.g., spool, job logs, and status) correctly and that this data can be used in flow definition, SAP provides three report templates in SAP Note 325118 (https://service.sap.com/sap/support/notes/325118). You need to copy the code for one of these report templates into your custom-developed program:

• SCMO_REPORT1
• SCMO_REPORT2
• SCMO_REPORT3

Table 1 describes the features of these three report templates.

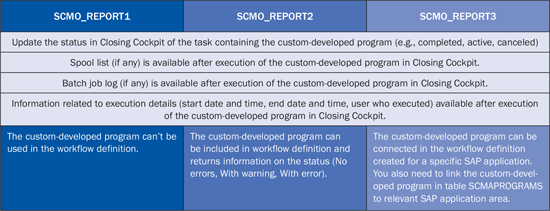

Table 1

Three report templates for a custom-developed program for the Closing Cockpit

Here are examples of using these three different scenarios. However, the use can differ based on an organization’s particular needs from custom-developed programs:

• There is a custom-developed program that is used for reporting and is a stand-alone process (e.g., a report showing changes in purchase order data). Such custom-developed programs do not need to be in a workflow. Therefore, SCMO_REPORT1 is suitable for such a custom-developed program.
• There can be cross-application relevant to the custom-developed program also, such as uploading exchange rates into an SAP system from a third-party tool. Therefore, SCMO_REPORT2 is suitable for such a custom developed program.
• There is a custom-developed program to convert the credit card file format from a bank-provided format into an SAP-readable format. This custom-developed program is to be used in a specific application, FI-TV (Travel Management), and can be used in the workflow of uploading the credit card file into an SAP system. Therefore, SCMO_REPORT3 is suitable for such a custom-developed program. When you define the workflow specific to that application (FI-TV in my example), then such custom-developed programs linked to that application can be used in the workflow.

After you include changes of one of these report templates into your custom-developed program, your custom-developed program is ready to be included in a task (or flow if applicable) definition in Closing Cockpit. The custom-developed program now behaves in the same way as a standard program that is linked. However, a lot of development work is necessary to change all existing custom-developed programs to adjust for the code of these SCMO_REPORT* templates. The organization may also have scores of custom developments and changing anything in the program’s code also involves retesting the custom-developed program’s features to ensure that there is no adverse impact. Therefore, option 2 provides an easier way to link custom developed programs in the Closing Cockpit.

Option 2: Use the SCMABOX Program to Link Custom-Developed Programs

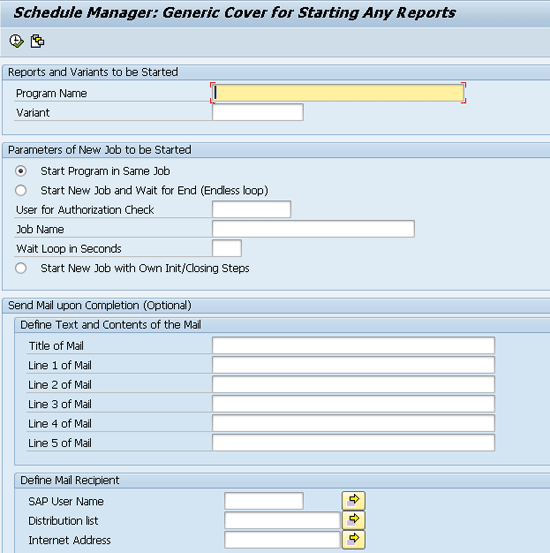

In the selection screen of program SCMABOX (Figure 4), enter the name of your custom-developed program name in the Program Name field. In case your custom-developed program has a selection screen, enter the variant in the Variant field that contains the selection screen values.

Figure 4

The selection screen of the SCMABOX program

Note
If you are using dynamic variables in your variant, make sure that SAP Note 1844130 (https://service.sap.com/sap/support/notes/1844130) is also implemented in your system correctly. The changes in this SAP Note make sure that the variants of your custom-developed program are copied into a temporary variant with the specific values of dynamic variables available at the time of execution or scheduling. You then execute the custom-developed program with this temporary variant to reflect the correct values. The boxes for Test Run and Activity options appear on the selection screen (Figure 4) only when you implement SAP Note 1075752 (https://service.sap.com/sap/support/notes/1075752) in your system.

Execute the SCMABOX Program

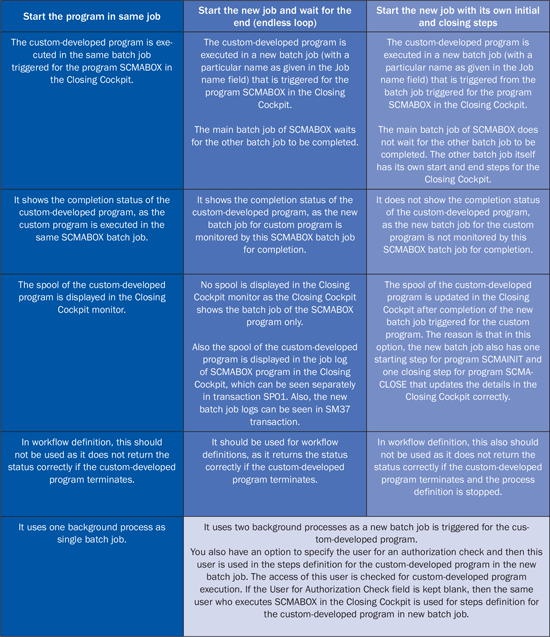

Table 2 compares the three methods for executing the SCMABOX program.

Table 2

A comparison of the three execution options in the SCMABOX program

Send Mail upon Completion (Optional)

You can configure the text and email recipient (specific user, distribution list, or external email ID) after the completion of the batch job of SCMABOX program.

Note
The sidebar titled “The SCMABOXE Program” contains the details of the new advanced program SCMABOXE. If you are having version 700 of Cross-Application Component (SAP_ABA), then use the details of this program SCMABOXE instead of program SCMABOX.

Set the Output Length of the Spool Created from the SCMABOX Program

There is an additional problem created by the use of the SCMABOX program: When the spool is generated by its execution, it picks the format X_65_80 (65 rows and 80 columns) page output by default. However, the output might have more columns and become truncated in the spool.

There are two ways to change the default layout for the spool for this program: user-specific default settings and all users default settings.

Method 1: User-Specific Default Settings

As specified in SAP Note 503024 (https://service.sap.com/sap/support/notes/503024), users can change the format (e.g., to X_65_255 page output) by following these instructions: Execute transaction SE38 and enter the corresponding report name. In the menu, select Program > Execute > Background (Figure 5).

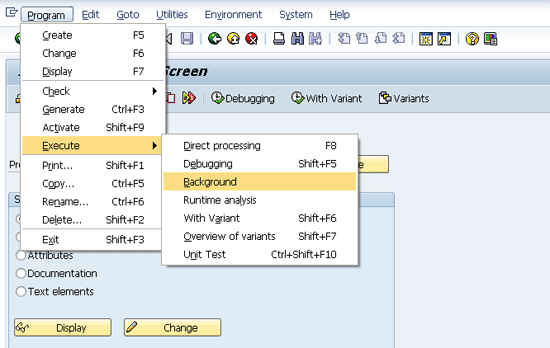

Figure 5

Set print parameters – Execute background step

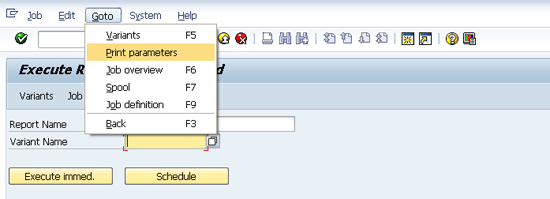

In the next screen (Figure 6) select Goto > Print parameters.

Figure 6

Set print parameters – Navigate to Print parameters

In the next screen (Figure 7) click the Properties button.

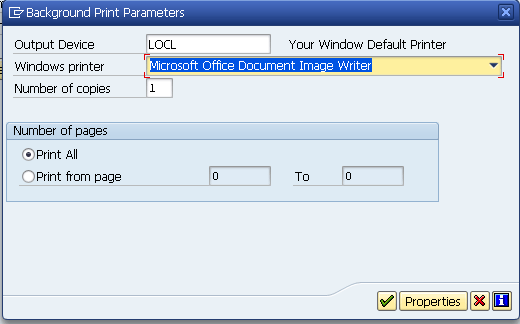

Figure 7

Set print parameters – Setting printer

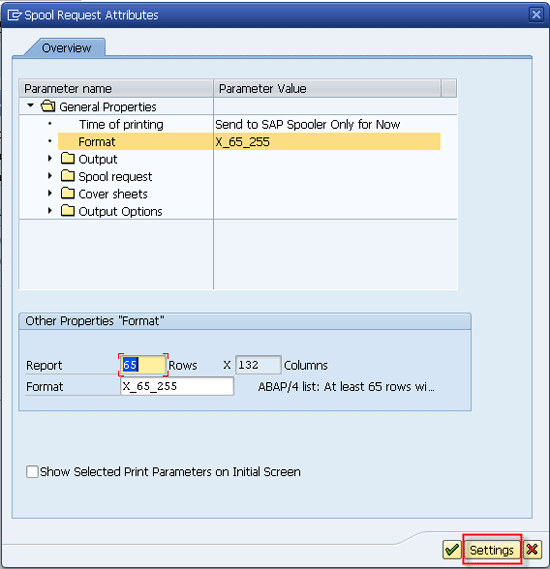

In the next screen (Figure 8) set the desired parameters for the printing. Enter the desired formatting (e.g., X_65_255)  and click the Settings button.

Figure 8

Set print parameters – Setting printer parameters pettings

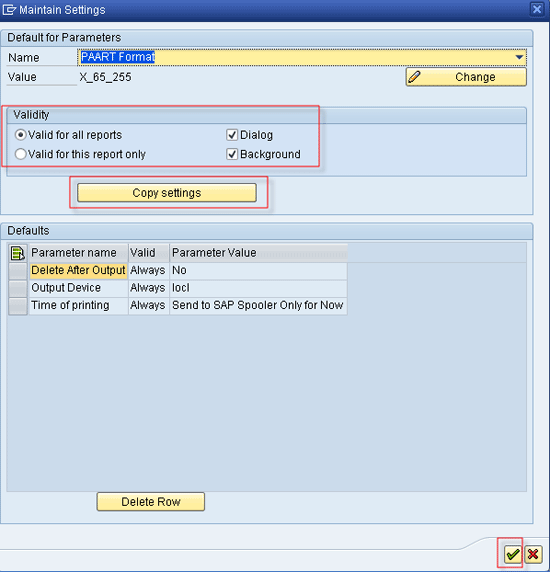

On the dialog box that appears next, select the validity of the settings made either specifically for this report or for all reports. After specifying various settings, click the Continue button to save the settings as shown in Figure 9.

Figure 9

Set Print Parameters – Set the print defaults step

Note
The setting made in Figure 9 is applied only to the user who is using method 1 for changing the layout of the spool of the SCMABOX program. Therefore, if the same setting needs to be applied to an entire organization, each user needs to do these steps separately. This process might be time-consuming and hectic for large organizations.

Method 2: All Users Default Settings

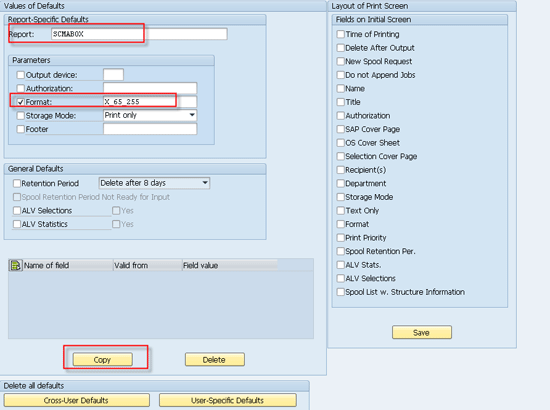

To change the parameters setting for all the users centrally, you need to execute program RSPRIPARADMIN in transaction SE38. On the selection screen, enter the report name and the desired format. Click the Copy button (Figure 10).

Figure 10

Set print parameters via program RSPRIPARADMIN

In the next screen (Figure 11), you see the default values stored for the program. These values apply to all the users (unless a user has specifically defined a different format using method 1).

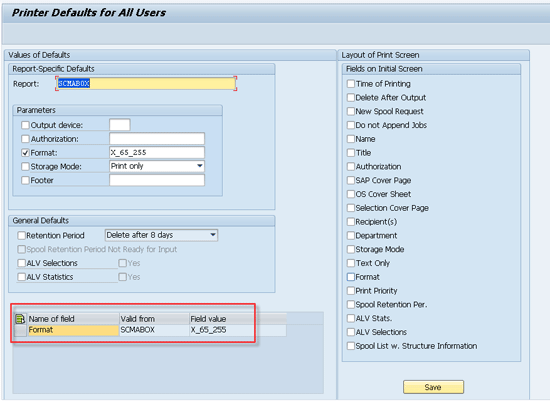

Figure 11

Default values set in program RSPRIPARADMIN

There are some other useful SAP Notes related to SCMABOX functionality. However, the following SAP Notes are useful only if you imported the task list in the Closing Cockpit from Schedule Manager:

• SAP Note 1518915
• SAP Note 1338505

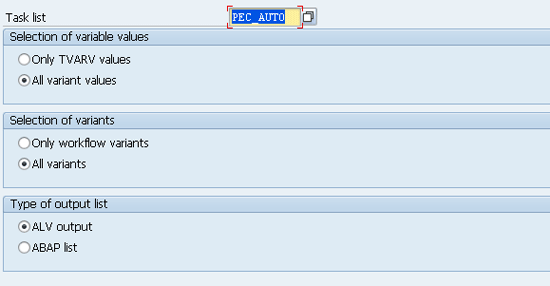

SAP Note 1518915 (SchedMan: Analysis report of the variable values) is available from the version 700 of Cross-Application Component (SAP_ABA) in SAP. Applying this SAP Note provides you with a program called SCMA_CHECK_VARIANT_VALUES. This program enables you to go to the selection screen and check the values of various variables used in a task list name (Figure 12).

Figure 12

Selection screen of program SCMA_CHECK_VARIANT_VALUES

On execution, the output shows the various variables values (Figure 13).

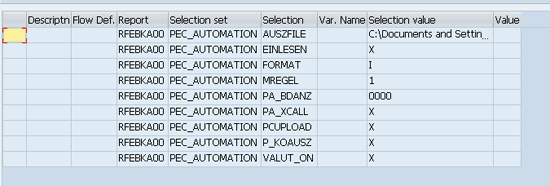

Figure 13

The output screen of program SCMA_CHECK_VARIANT_VALUES

Applying SAP Note 1338505 (SCHEDMAN: Automatic transport of report variants) provides you with a program called ZSCMA_TRANS_BOX. This program enables you to go to the selection screen and enter a task list name (Figure 14).

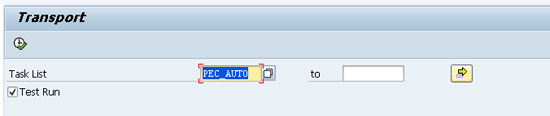

Figure 14

The selection screen of program ZSCMA_TRANS_BOX

After you execute program ZSCMA_TRANS_BOX in a test run, the output shows various reports and variants (Figure 15).

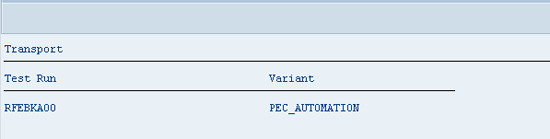

Figure 15

The output screen of program ZSCMA_TRANS_BOX in test run mode

During the actual execution of program ZSCMA_TRANS_BOX, it asks the transport request number in which it saves all the variants. You then can transport the same to other systems. The important point to notice is that if you use the SCMABOX program in your task list (template), this program also fetches the custom-developed program and variant linked in SCMABOX and includes that in the transport request.
