Business objects are frequently used in workflow and interfaces with non-SAP applications. In either case, you mostly create a new business object to fulfill a requirement for a particular business process. For example, with custom fields of the material master, no method is available in the business object of material BUS1001 to either get or set the custom fields. In such situations, you create a new custom business object to cater to these requirements­. Creating new business objects has the risks of low performance and continued maintenance. To overcome these problems, the solution is to enhance the standard business object to fulfill specific requirements, resulting in fewer performance and maintenance risks.

You need to enhance two sections to improve a business object’s method: the parameter enhancement and the source code enhancement. Methods are events of the business object that are performed based on the business need. Methods are used for either data manipulation or data modification. Methods for data manipulation provide the attribute values after performing a certain procedure. Methods for data modification either create or change the attribute values as per the requirements. With data manipulation, the parameter enhancement requires you to improve the structure used in either exporting or changing the parameter. You can enhance the structure by customizing includes or appending structures. The source code enhancement is implemented by an implicit enhancement. With data modification, the difference from data manipulation is that the import parameter is used instead of the export parameter. The remaining parameter and source code enhancements remain the same.

Here are two examples of enhancing a standard business object:

• Example 1: For the standard business object Inspection Lot (BUS2045), the business process needs information related to the material, then the standard business object’s method is developed to provide additional information without creating a new business object. In this example, you need customizing includes and an implicit enhancement that are implemented to cater to these requirements.
• Example 2: For the standard business object of material BUS1001, the additional information of material group standard and custom fields is required by the user, and then the standard business object’s method is enhanced to cater to these requirements. In this example, an append structure and implicit enhancement are used to fulfill the business process.

I now show you how to implement these two examples. Before you implement these enhancements in the business object, however, you must have knowledge of ABAP, including the ABAP Data Dictionary, function modules, and business objects.

Enhance a Business Object Using Customizing Includes and an Implicit Enhancement

In this example, I describe the procedure to enhance the method GetDetail of business object Inspection Lot (BUS2045). Use transaction SWO1 to go to the Business Object Builder (Figure 1).

Figure 1

Screen of business object builder

Enter the business object name that you want to enhance and then click the Display button. The business object’s component overview is displayed (Figure 2). Select the method that you want to enhance. In this example, select the GETDETAIL method of business object Inspection Lot (BUS2045).

Figure 2

Business object’s component overview screen of BUS2045

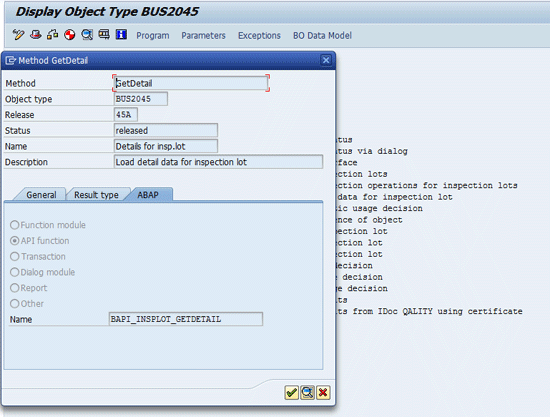

On the new pop-up screen, the ABAP tab and the API function radio button are selected by default. Double-click the function module that is populated in the Name field to open the function module (Figure 3).

Figure 3

Function module selection screen of GETDETAIL method

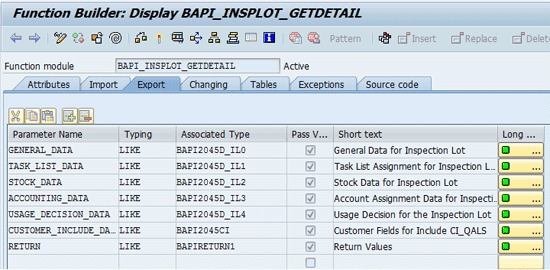

Go to the Export parameter tab of function module (Figure 4). Here, the customer include exists that contains customizing include CI_QALS. Select the type BAPI2045CI of export parameter CUSTOMER_INCLUDE_DATA for enhancement.

Figure 4

Method’s export parameter screen

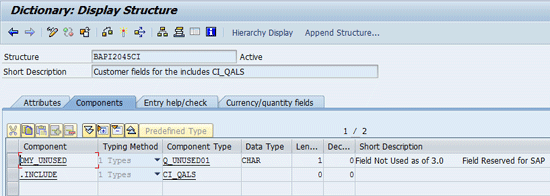

Double-click the type BAPI2045CI of export parameter CUSTOMER_INCLUDE_DATA. The component overview of structure BAPI2045CI is displayed (Figure 5). Currently, no CI_QALS structure exists in the ABAP Dictionary.

Figure 5

BAPI2045CI component overview screen before enhancement

To create the structure CI_QALS double-click Component Type CI_QALS. The pop-up screen appears and asks whether you want to create new structure CI_QALS (Figure 6). Click the Yes button.

Figure 6

Create structure CI_QALS

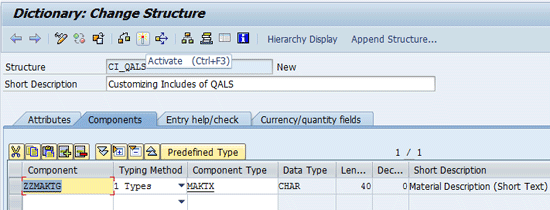

Now add new fields in structure CI_QALS based on the user requirement and then click the activate icon on the toolbar to activate the structure (Figure 7).

Figure 7

The BAPI2045CI component overview screen after enhancement

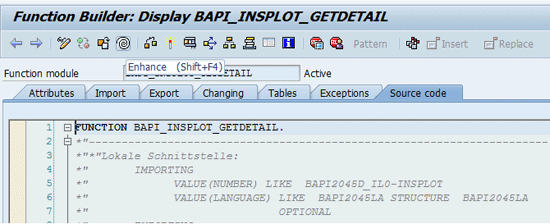

You have completed the parameter enhancement. Now you need to configure the source code enhancement. First, select the Source Code tab of the function module. Now click the enhance icon on the toolbar for source code enhancement (Figure 8).

Figure 8

Enhance the standard source code

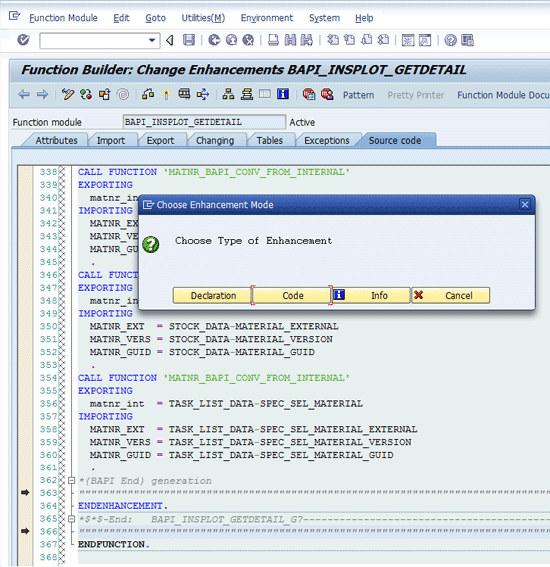

Follow menu path Edit > Enhancement Operations > Show Implicit Enhancement Options. Go to the end of the function module before the ENDFUNCTION statement. Select the implicit enhancement section that appears in this module and then choose Edit > Enhancement Operations > Create Implementation from the menu. You see two enhancement types: Source Code and Data Declaration. Click the Code button to select the enhancement type of source code (Figure 9).

Figure 9

Select the enhancement type

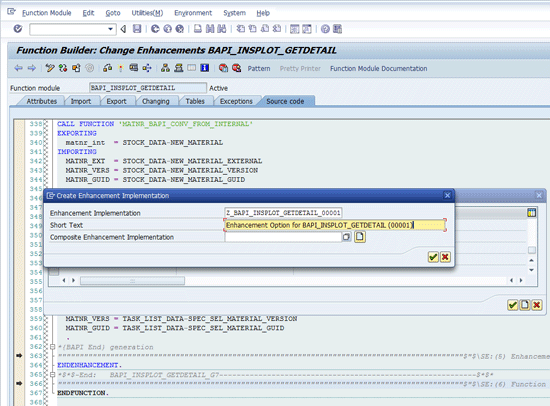

Now enter the Enhancement Implementation name and Short Text (Figure 10) to differentiate between the different types of enhancement implementations.

Figure 10

Enter the name and short text of the enhancement implementation

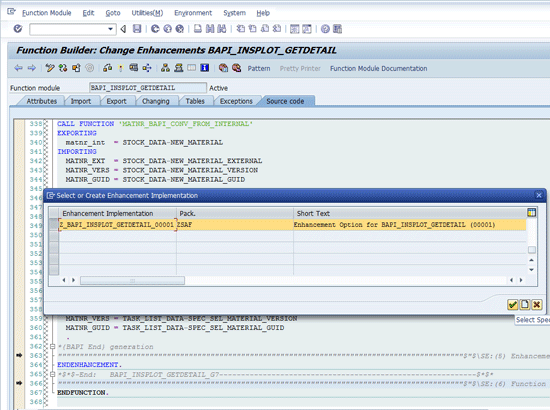

Select the new enhancement implementation to enhance the source code of the function module (Figure 11).

Figure 11

Select the new enhancement implementation

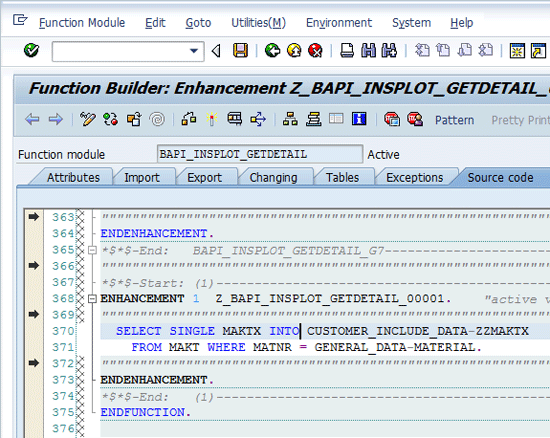

Now add the source code logic based on your requirements (Figure 12). You can write the following statements in this new implementation:

• Modify any return parameter value
• Modify the data in the transparent table (directly or through the function module)

Figure 12

New logic in the source code of the function module

Now test the method GETDETAIL of business object BUS2045. The results of the method are in Figure 13.

Figure 13

Display results of the GETDETAIL method

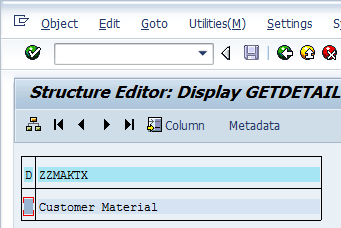

You can see that the structure CUSTOMER_INCLUDE _DATA contains the value against field ZZMAKTX (Figure 14).

Figure 14

Display the results of structure CUSTOMER_INCLUDE_DATA

Enhance the Business Object Using Append Structure and Implicit Enhancement

In this example, I explain the procedure to enhance the method GetDetail of business object BUS1001. Perform the same steps as in the previous section to go to the function module of the business object’s method.

Go to the Export tab of the function module (Figure 15). No customer include exists, so you have to use the append structure for type BAPIMATDOA of structure MATERIAL_GENERAL_DATA parameter. To do this, double-click the structure type BAPIMATDOA.

Figure 15

The export parameter screen for GetDetail of business object BUS1001

Click the Append Structure… button from the toolbar to append the structure (Figure 16).

Figure 16

Overview of BAPIMATDOA structure

Now a pop-up screen appears. Click the create append icon (Figure 17).

Figure 17

Create a new append structure for the BAPIMATDOA structure

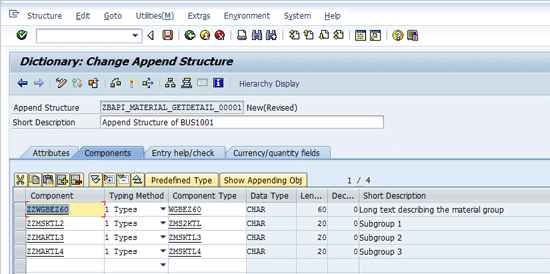

Now specify the Append Structure name and the new fields to be added in the append structure. You can add both standard and custom fields (Figure 18).

Figure 18

The append structure overview screen

Save and activate the append structure. You have completed the parameter enhancement. The source code enhancements are the same as shown in the previous section.
