A global company often trades goods among its independent legal entities. Tracking these cross-company sales within a global SAP Business Information Warehouse (BW) system can be challenging, as each entity is typically represented by a different SAP R/3 company code. Tracking these sales at the ordering site is not a problem, but it's a different story for the delivering site, because no Sales and Distribution (SD) documents are in the corresponding company code.

I will show you how to solve this problem with the help of a BW functionality called “return tables.” The example that I present uses only SD sales documents. Result tables are a means to increase the granularity of your reports by returning several data sets derived from one data set passed from BW's communication structure. You will learn how return tables work and a strategy for putting them to use.

In my example, you have an international company called “Dragon Computers” that sells computers. It operates from three countries: the United States, Germany, and Singapore. The headquarters, including production facilities, are located in the U.S. The other two sites are sales offices serving only European and Asian markets, respectively. Neither are capable of manufacturing or putting something in stock. The global ERP system is SAP R/3 using the SD, Materials Management (MM), Production Planning (PP), Financials (FI), and Controlling (CO) modules.

Each site is represented by its own company code, and all company codes are united in one client. When a customer in the U.S. orders a new computer, the order is processed completely in the U.S. If a German customer orders a new computer at the German sales office, however, the customer order is converted into an R/3 sales order in the German company code. As Germany does not have any production facilities, the computer must be fabricated at the U.S. plant. This is determined by the field delivery plant indicated on the SD sales order. As all sites are running in an integrated system, this order is automatically forwarded to the production facilities. Headquarters ships directly to the German customer. The sales office invoices the customer. Finally, the U.S. invoices the sales office, which then invoices the customer. Figure 1 outlines both the normal and cross-company sales processes.

Dragon Computers uses BW for sales reporting. Global and local management are keenly interested in the value of all order items entered into the system in one day. They want to look at this key figure from a global and a local perspective and compare the differences between them. The global view includes all third-party sales; which internal site entered the order is not relevant for this report. In contrast, the local view shows orders from one site, including both third-party and internal sales. For Germany and Singapore, it is easy to determine the local view. These are all orders entered by one of these sites.

The U.S. situation is more difficult, as the U.S. processes both third-party and internal sales. Management wants to see both types of sales in the local U.S. report. The incoming orders from the sales offices should be listed under the customer number of the site. The value is supposed to be the internal price, which is half of the price of the corresponding third-party sale. Figure 2 shows the details.

The problem now is that no sales document indicating an internal sale exists in the U.S. company code. So, you have to build a link between the U.S. site and the local sales orders posted by Germany and Singapore. The main issue is how to handle internal sales without having a sales document in the desired company code. The answer is simple: Copy the SD sales document.¹

You can easily identify internal sales with the help of two characteristics: company code and delivery plant. In this scenario, you face an internal sale only if the delivery plant is not assigned to the company code in R/3. Once you have identified such an order, create a new data set by replacing the company code of the sales office with the U.S. company code; copying the order, item, and material numbers; replacing the customer number with the sales office's number of the customer that entered the order; and changing the value of the order to the internal selling price.

The best place to copy the SD sales data is within BW's update rules. They provide a standard mechanism for creating additional data sets — return tables. If you have several R/3 instances connected to your BW system, creating a new data set in BW makes only one implementation necessary.

Figure 1

The sales process for U.S. sales results in the U.S. facility directly invoicing the customer. For sales originating in Germany, (1) the customer places an order at the German office, (2) the German office relays the order to the U.S. plant, (3) the U.S. plant ships the computer to the German customer, (4) the German office invoices the customer for U.S. $4,000, and (5) the U.S. plant invoices the German office for U.S. $2,000.

Figure 2

Global and local reports

Return Tables

Update rules specify how data from a data target or an InfoSource is transferred to another data target, and you must define one each time you provide a BW data target with data. They describe how data is transformed on their way from the Persistent Storage Area (PSA), Operational Data Store (ODS), or InfoCube areas of BW to another data target. At least one update rule has to be defined for each data target. Update rules consist of various components like a start routine and rules for each field of the data target. Thus, fields can be filled by using various options like copying the field from the InfoSource or using constants and user-defined routines. The latter options may return a single value or a return table. Return tables allow you to split one data set yielded by BW's communication structure into an arbitrary number of data sets, which are then stored in the data target.

The start routine is a special type of user exit that allows you to access a complete data package and define and initialize global variables for the current update rule. Update rules also contain steps that specify which characteristics and key figures of the target InfoCube or ODS are filled and how this is done. You define one step for each update rule that fills each field. There are two categories of steps: one for key fields, and one for all other fields.

You have several options for pushing data in these fields, but the only one relevant for this article is a routine. It allows you to create customized rules for data transfer. Like start routines, routines are a type of user exit. The difference between a start routine and a routine is that only the data set currently processed (and not the complete package) is accessible. Further on, no global variables can be defined. Routines have various input parameters and normally return one result value unless you do not use result tables.

The exact procedure to implement return tables depends on the type of data target. Here's why: Once a data package is forwarded to a data target, it has to run through an update rule. Within this update rule, the start routine is processed first if one exists. If not, the update rule skips to the next step. Then, the key fields of the data target are calculated for each data set in the package.

The key figures consist of all characteristics available in the InfoCube. In contrast, the key figure of an ODS object may be a subset of characteristics. The base for this data is the communication structure. Once the key fields are successfully filled, BW determines the remaining characteristics and key figures, including the corresponding units of measurement. As a result, you receive one or more data sets that at a later stage are saved to the data target related to the update rule. Figure 3 summarizes the complete process.

In BW, return tables are available only for the fields that are not part of the key figures of the data target. For InfoCubes, therefore, non-key fields are key figures and units of measure only; for ODS objects, they can also be applied to selected characteristics.

Figure 3

Workflow in update rules

Implementing the Solution

Each of Dragon Computers's three sites has a unique company code and plant. Figure 4 lists the company codes and the customer and material numbers relevant to this example. As these are incoming orders, you want to transfer all order items from R/3 to BW and store them in an ODS object. You might be thinking that an ODS object is not the right place to put data for reporting. In most cases, you are right. To illustrate the use of return tables and how they handle the data, however, an ODS is the right data target, because you can easily store data at the item level in it. Remember, too, that an ODS object can easily be forwarded to any InfoCube. Figure 5 shows the data model that you might use.

Figure 4

Relevant key figures and values

Figure 5

Data model and data flow

Step 1. Customize the DataSource

You first need to acquire the right data. You know that the sales orders come from SD in R/3. BW has a standard DataSource, 2LIS_11_VAITM, that enables to transfer order items from SD. You will need to customize this DataSource so that its fields match the ones you are using. You do this through the Logistics Extraction Cockpit. Access it from BW using transaction code LBWE, or menu path Basis Components>Business Information Warehouse>Settings for Application Specific DataSources>Logistics> Managing Extract Structures>Logistics: Extract Structure Customizing Cockpit. In the SD Sales BW section, locate DataSource 2LIS_11_VAITM.

Click on Maintenance under the Structure column to the right of this entry and select the fields you want to extract. Figure 6 shows the list of fields you need for your example. After the selection is complete, click on the OK button.

Figure 6

Fields to be extracted

Step 2. Replicate the DataSource

First, look in the Source Systems folder of BW's Administrator Workbench (transaction code RSA1) to see if your R/3 system is listed. If it is not, you can create a connection by choosing the Create option from the context menu. Having a sound connection, highlight the entry for your source system and choose Replicate DataSources from the context menu. Expect to wait awhile for this process to complete.

Step 3. Create an InfoSource and Map the DataSource to It

Since you are using a standard Data-Source, you can create the InfoSource from BW's Business Content. Go to the Business Content listings and make sure that Grouping is set to Necessary Objects Only, and the Collection Mode is set to Start Manual Collection (Figure 7).

Click on InfoSource Transaction Data, and select InfoSource 2LIS_11_ VAITM. Then run the collection and click on the install icon to activate all necessary objects.

Now switch to the Modeling folder of the Administrator Workbench. In the InfoSources section, find the InfoSource just created. Right-click on Sales Order Item Data and choose Assign DataSource from the context menu.

Enter the name of your R/3 system in the pop-up dialog box. The system then automatically generates a proposed mapping between the DataSource and the InfoSource. As you are using standard fields, this proposal should match your needs. Save and activate the mapping.

Figure 7

On BW's Business Content screen, (1) set Collection Mode to Start Manual Collection, (2) set Grouping to Necessary Objects Only, (3) select InfoSource 2LIS_11_VAITM, and (4) click on Install.

Step 4. Create the ODS

Open the Modeling folder and double-click on the Data Targets subfolder. Right-click in the InfoArea where you want to deposit the new ODS, and choose Create ODS Object. BW will prompt you for a name. Your new ODS will have the technical name ZO_SD and be called Incoming Orders.

Now you have to determine the key fields of the ODS; Company code, Order number, and Item number will do.

You also must add the remaining characteristics and the key figures. Their units will be drawn automatically. The corresponding unit of a key figure is set in the InfoObject. It is easier to choose the InfoSource 2LIS_11_ VAITM as a template, because it offers you the necessary fields. In the left part of Figure 8, you can see the selected template. To enable report creation based on this ODS, select the BEx Reporting option in the Settings section. For convenience, select Set quality status to ‘OK' automatically in the Settings section. Save and activate your new object.

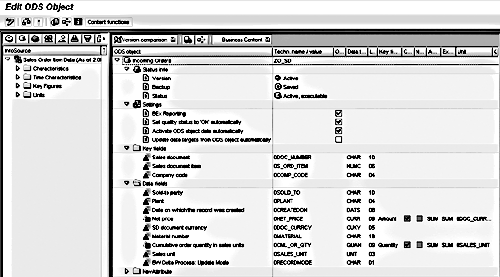

Figure 8

The complete definition of ODS ZO_SD, Incoming Orders

Step 5. Implement the Update Rules

You create your return table in this step. First, you must create the update rule itself. Right-click on the ZO_SD ODS and select The complete definition of ODS ZO_SD‚ Incoming OrdersCreate Update Rule from the context menu. The system now asks you to enter a DataSource from which the update rule will take its data. Enter the name of the previously created InfoSource, 2LIS_11_VAITM. Click on the next-screen icon in the upper left of the screen. BW now proposes a mapping for the InfoSource 2LIS_11_VAITM fields to ODS object ZO_SD.

The skeleton of the new update rule is ready. You now have to implement the return table functionality for each step, as shown in Figure 9. The system now runs the ABAP Editor and creates a template that will be the basis for your implementation.

The routine template has several parameters. For using return tables, two are of importance: ICUBE_VALUES and COMM_STRUCTURE. The latter reflects the communication structure and holds the values from the communication structure, whereas ICUBE_VALUES reflects the structure of the data target. In the case of InfoCubes, dimensions are resolved and replaced by its characteristics. ICUBE_VALUES has the complete key for the data set to be created. Depending on the structure of the data target and the calculations taking place in the corresponding update rules, both structures may differ — for instance, when an InfoCube or ODS contains characteristics or key figures is derived from several characteristics or key figures. In the case of a one-to-one mapping between the communication structure and data target, both structures are equal.

The return table itself is written to the variable RESULT_TABLE and has the same type of structure as the input parameter ICUBE_VALUES, because the contents of the RESULT_TABLE sets will be added to the data target. RESULT_TABLE can be found in the TABLES section of the routine header (Figure 10). Remember that a return table may hold an arbitrary number of data sets after it has run through the routine, and therefore the TABLES part is the only place to put it.

You now have to implement the body of the routine. Figure 11 shows sample coding for the characteristic Sold-to party. It first copies the key values of the original data set, and then copies the Sold-to party characteristic, which is the field currently being processed, and adds the data set to the return table. At this point, you must decide whether to add another data set to the return table. You do so when the current sale invokes an internal sale. This type of sale can be identified with the help of the company code and the delivery plant. If the plant is not assigned to the company code, you have to create a new data set.

The sample coding makes use of a user-defined help table called ZCOMPPLANT that consists of two key fields, COMP_CODE and PLANT. This table holds all plants and their assigned company code. In the sample code, this is a one-to-one correspondence. This enables you to select the corresponding plant for the actual company code and compare it to the plant value passed on by the communication structure. If the values are not equal, you have to add a second set to the return table that represents the internal sale. These sales always carry company code 0710, because they are processed only by the U.S. site.

This is why I assigned company code 0710 to the TARGET structure. This assignment also creates a new set of key values. Later, this enables BW to add a new data set to ODS ZO_SD. As you are processing an internal sale, the Sold to Party has to be changed. You have to use the internal customer numbers of your sales offices. You make just two assignments in this routine to obtain the second set, which is added to the return table as well.

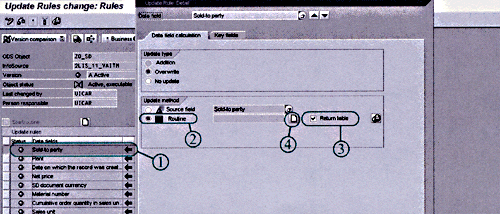

Figure 9

To create an update routine template with return tables, (1) highlight and double-click on the first step under Update rules (Sold-to party, in this case), (2) select Routine and (3) Return table options, and (4) click on the create/modify icon.

FORM compute_characteristics
TABLES   MONITOR STRUCTURE RSMONITOR "user defined monitoring
        RESULT_TABLE STRUCTURE /BIC/AZO_SD00
USING   COMM_STRUCTURE LIKE /BIC/CS2LIS_11_VAITM
	RECORD_NO LIKE SY-TABIX
	RECORD_ALL LIKE SY-TABIX
	SOURCE_SYSTEM LIKE RSUPDSIMULH-LOGSYS
	ICUBE_VALUES LIKE /BIC/AZO_SD00
CHANGING RETURNCODE LIKE SY-SUBRC
	ABORT LIKE SY-SUBRC. "set ABORT <> 0 to cancel update

FORM compute_characteristics
	TABLES   MONITOR STRUCTURE RSMONITOR "user defined monitoring
		RESULT_TABLE STRUCTURE /BIC/AZO_SD00
	USING    COMM_STRUCTURE LIKE /BIC/CS2LIS_11_VAITM
		RECORD_NO LIKE SY-TABIX
		RECORD_ALL LIKE SY-TABIX
		SOURCE_SYSTEM LIKE RSUPDSIMULH-LOGSYS
		ICUBE_VALUES LIKE /BIC/AZO_SD00
	CHANGING RETURNCODE LIKE SY-SUBRC
		ABORT LIKE SY-SUBRC. "set ABORT <> 0 to cancel update
*
*$*$ begin of routine - insert your code only below this line *-*
* fill the internal table "MONITOR", to make monitor entries
	DATA TARGET like /BIC/AZO_SD00.
	DATA PLANT  like COMM_STRUCTURE-plant.
* copy original data set and append to return table
	TARGET = ICUBE_VALUES.
	TARGET-SOLD_TO = COMM_STRUCTURE-SOLD_TO.
	APPEND TARGET TO RESULT_TABLE.

* check if modified replicate is necessary.
 select single plant from zcompplant
		into plant
		where comp_code = COMM_STRUCTURE-comp_code.

if sy-subrc = 0.
if COMM_STRUCTURE-plant <> plant.
*  Modify dataset
	target-comp_code = '0710'.
	if COMM_STRUCTURE-comp_code = '0720'.
	 target-sold_to = '1004'.
	else.
	 target-sold_to = '1005'.
	endif.

	  append target to RESULT_TABLE.
 	 endif.
	endif.

* if the returncode is not equal zero, the result will not be
updated RETURNCODE = 0.
* if abort is not equal zero, the update process will be canceled
ABORT = 0.

*$*$ end of routine - insert your code only before this line  *-*
*
ENDFORM.

Step 6. Populate the ODS

The DataSource now has to be activated in the source system via the Logistics Cockpit, which you used for customizing the DataSource. I've assumed that you will do a full update, but this approach also works for delta updates. To upload data, you have to create an appropriate InfoPackage for the InfoSource. You can find the corresponding function Create InfoPackage in the context menu of the source system assigned to the InfoSource. The subsequent details will be dependent on your system.

Step 7. Evaluate the Results

Figures 12 and 13 show two excerpts from the ZO_SD ODS. The first is the sample data sets, which are the basis of the example. This is how the ODS would look with a simple one-to-one update rule not using a result table. It shows 10 data sets. Orders 100000 through 100003 are U.S. sales. Orders 100004 and 100005 come from Germany, and the Singapore sales office contributes order 100006 to the data pool. The last three orders invoke an internal sale because they are sales office orders. So, all the data sets that belong to these orders are replicated when you use return tables. In this case, you should have 14 data sets in the ODS, as Figure 13 shows.

The 14 data sets now are sufficient to create a local sales report for the U.S., including internal sales. Figure 14 shows a simple ODS query doing this job.

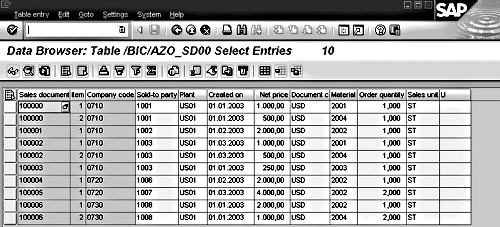

Figure 12

ODS ZO_SD without return tables

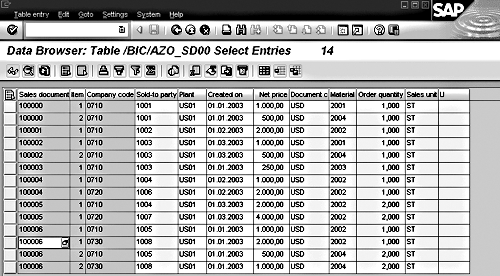

Figure 13

ODS ZO_SD with return table processing

Figure 14

Local U.S. report produced using BW result tables

You could add characteristics to the InfoCube or ODS structure to store the new value. The disadvantage is that for each characteristic or key figure that has to be changed, a new field with more or less the same meaning has to be added. In this simple scenario, this applies only to the customer number and the value of the order. In real life, reporting is usually a lot more complex, and this method will blow up your data model. Furthermore, if the number of third-party sales is significantly higher than the number of internal sales, the added fields will be empty for most of the orders.
